Throttle Body: Removal

NOTE: Removal steps in this procedure may contain installation details.
Fig 1: Locating Intake Tube Clamp
GLL155121Courtesy of VOLVO CARS CORPORATION

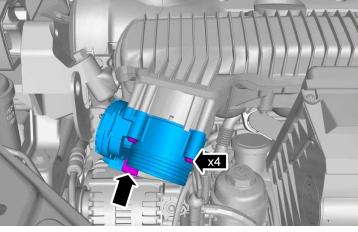

Fig 2: Locating Throttle Body Bolts
GLL155122Courtesy of VOLVO CARS CORPORATION

Torque:  M6

10 Nm
