Air Cleaner Housing: Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the engine control module (ECM). See ENGINE CONTROL MODULE (ECM)

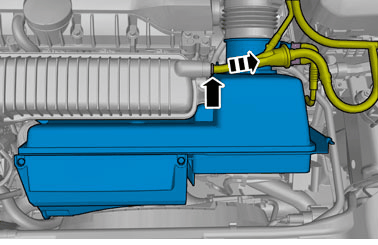

Fig 1: Identifying Cover Screws And Clips

Courtesy of VOLVO CARS CORPORATION

Torque: M6

10 Nm

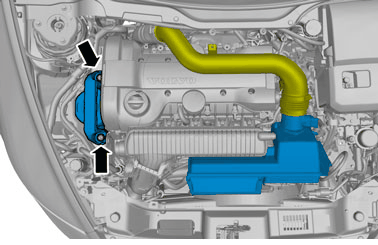

Fig 2: Identifying Clamp And Tubing

Courtesy of VOLVO CARS CORPORATION

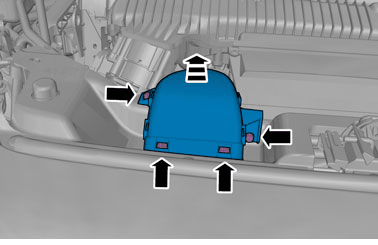

Fig 3: Identifying Connector

Courtesy of VOLVO CARS CORPORATION

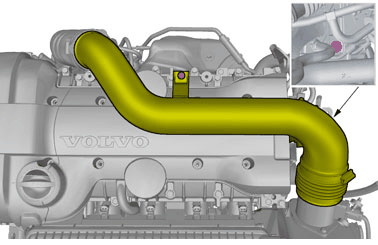

Fig 4: Locating Fasteners

Courtesy of VOLVO CARS CORPORATION

Torque: M6

10 Nm

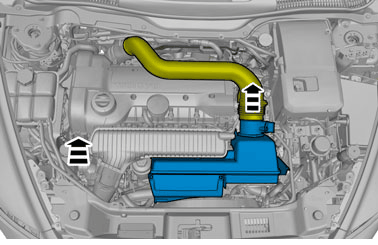

Fig 5: Locating Engine Mount Bolts

Courtesy of VOLVO CARS CORPORATION

CAUTION: Note the position of the component before removal.

Torque: M10

50 Nm

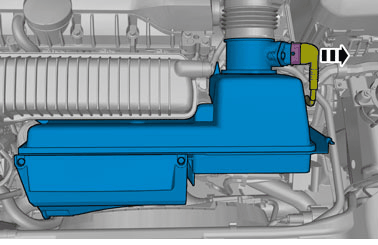

Fig 6: Identifying Air Intake Tube

Courtesy of VOLVO CARS CORPORATION

NOTE: This step requires considerable force.

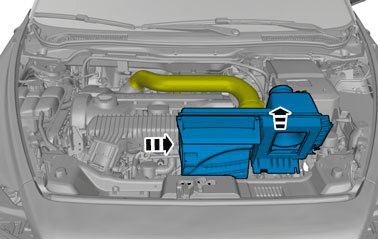

Fig 7: Identifying Air Cleaner Module

Courtesy of VOLVO CARS CORPORATION
