Remove The Integrated Relay/FUSEBOX

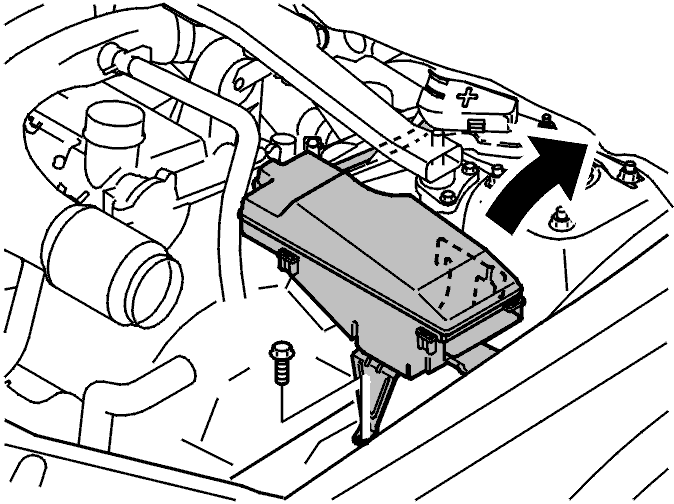

Fig 1: Identifying Integrated Relay Fuse Box Bracket Screw
GLL104181Courtesy of VOLVO CARS CORPORATION

Remove the integrated relay/fuse box bracket screw. Lift it up and put to one side. Tie it up using a cable.
