Brake Pedals: Installation: Notes

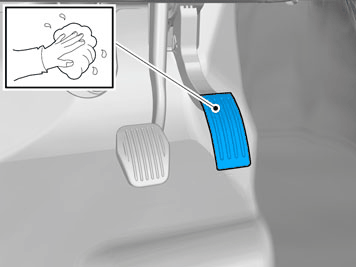

Fig 1: Verify Clean Surfaces

Courtesy of VOLVO CARS CORPORATION

Clean the surface.

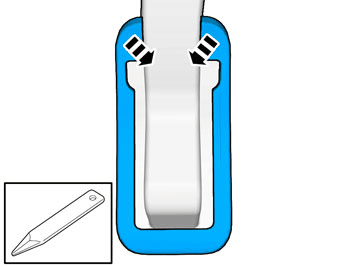

Fig 2: Removing Original Cover

Courtesy of VOLVO CARS CORPORATION

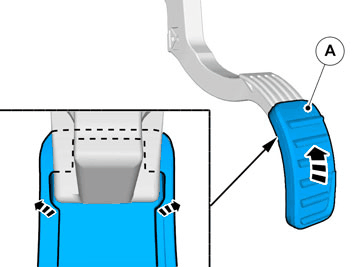

Fig 3: New Cover Fully in Place

Courtesy of VOLVO CARS CORPORATION

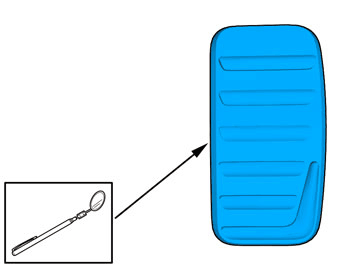

Fig 4: Use Mirror to Check

Courtesy of VOLVO CARS CORPORATION

CAUTION: Using a mirror check that the pedal rubber covers the edges of the pedal.
