Cars With Automatic Transmissions

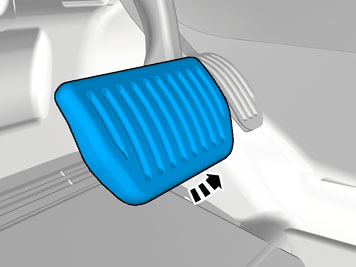

Fig 1: Removing Brake Pedal Pad

Courtesy of VOLVO CARS CORPORATION

The part(s) are not to be reused.

Fig 2: Installing New Pad

Courtesy of VOLVO CARS CORPORATION

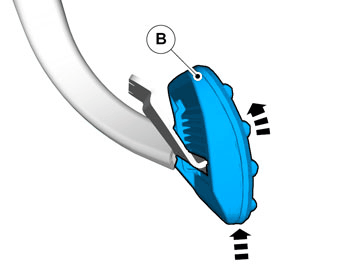

Hook the pedal rubber onto the pedal at the lower edge and pull the pedal rubber upward.

Fig 3: Use Tool As Needed

Courtesy of VOLVO CARS CORPORATION

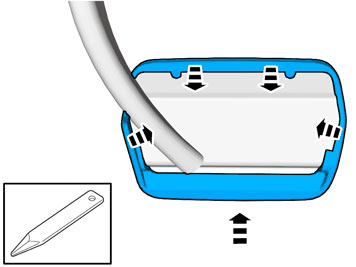

Press the pedal rubber towards the pedal and at the same time fold the pedal rubber's profile over the pedal using a straightening tool.

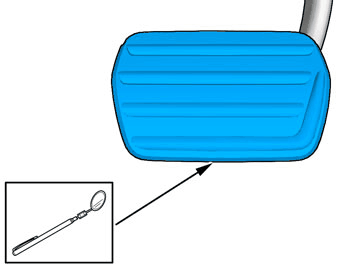

Fig 4: Verify With Mirror

Courtesy of VOLVO CARS CORPORATION
