Seat Belt TENSIONER
WARNING: This page is about a different car, the 2010 Volvo V70, 2009 Volvo V70, and 2008 Volvo V70. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

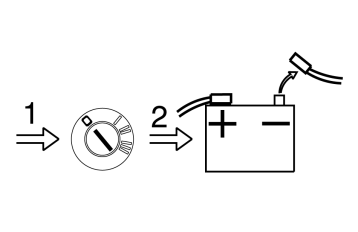

Disconnect the battery ground cable. See BATTERY DISCONNECTING AND CONNECTING .
Information about handling and storing pyrotechnical SRS-components. See HANDLING NON-DEPLOYED PYROTECHNICAL PART .
WARNING:
Do not use test equipment on the Supplemental Restraint System Module (SRS) electrical connectors.
WARNING:
A pyrotechnical SRS component must never be unscrewed, repaired or moved to another vehicle.
Remove the following items:
- the side panel. See SIDE PANEL FRONT SEAT
- the quick-release connector. See QUICK-RELEASE CONNECTOR BELT .
Remove the electrical connector. See IGNITER WIRE CONNECTOR .

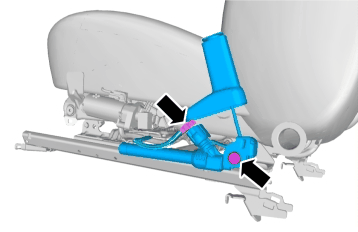

Torque: Seat belt tensioner lap to seat
40 Nm
To install, reverse the removal procedure.
Carry out an inspection of the impact protection system. See SUPPLEMENTARY RESTRAINT SYSTEM (SRS), INSPECTION
