Safety Belt Buckle, Rear: Removal

WARNING: This page is about a different car, the 2010 Volvo V70, 2009 Volvo V70, and 2008 Volvo V70. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

Removal steps in this procedure may contain installation details.

Remove the seat cushion, rear seat, see SEAT CUSHION, REAR SEAT

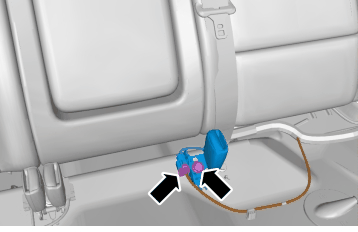

Fig 1: Removing Rear Seat Safety Belt Buckle
GLL154930Courtesy of VOLVO CARS CORPORATION

Torque:  Buckle safety belt to body

40 Nm
