Removal And Installation

Remove the plenum cover, see PLENUM CHAMBER (2008-2010) or PLENUM CHAMBER (2011-2012) .

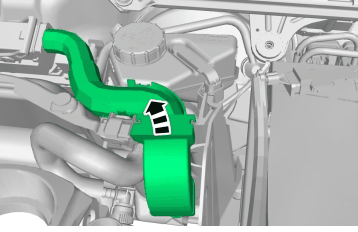

Fig 1: Identifying Cover
GLL155716Courtesy of VOLVO CARS CORPORATION

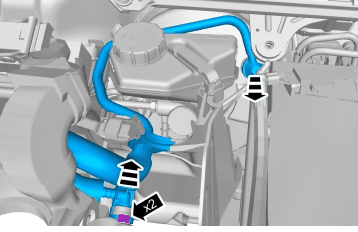

Fig 2: Locating Connectors
GLL155714Courtesy of VOLVO CARS CORPORATION
