Brake Pads Rear: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Perform parking brake, adjusting, see PARKING BRAKE, ADJUSTING

Remove the wheel, see WHEELS

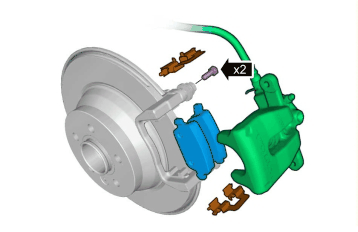

Fig 1: Identifying Anti Rattle Spring

Courtesy of VOLVO CARS CORPORATION

Fig 2: Identifying Caliper Slide Pins

Courtesy of VOLVO CARS CORPORATION

Torque: slide rail rear brake caliper

35 Nm

Fig 3: Identifying Caliper Piston Returned Using Special Tool

Courtesy of VOLVO CARS CORPORATION

Fig 4: Identifying Sliding Surfaces

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the mating faces are clean and free of foreign material.

NOTE:

Removal steps in this procedure may contain installation details.

See information about safety information brake system, see SAFETY INFORMATION BRAKE SYSTEM

Remove rear wheel, see WHEELS

Perform parking brake, adjusting, see PARKING BRAKE, ADJUSTING

Fig 1: Identifying Brake Caliper Bolts

Courtesy of VOLVO CARS CORPORATION

WARNING:

Make sure that no load is placed on the brake hose.

Torque: Slide rail rear brake caliper

28 Nm

Torque: Slide rail rear brake caliper

35 Nm
