Pedal Box, Brake (2011): Removal

Remove the following items:

• Combined instrument panel, see COMBINED INSTRUMENT PANEL
• Stoplamp switch, see STOPLAMP SWITCH
• Accelerator pedal, see ACCELERATOR PEDAL

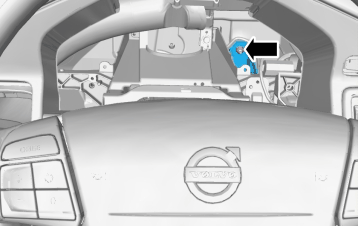

Fig 1: Locating Nut

Courtesy of VOLVO CARS CORPORATION

Torque:  8

24 Nm

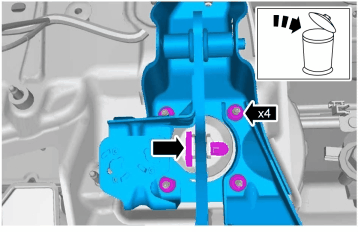

Fig 2: Locating Brake Booster Nuts

Courtesy of VOLVO CARS CORPORATION

Torque:  8

24 Nm
