Parking Assistance, Rear: Installation

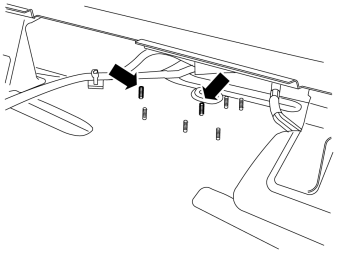

Fig 1: Locating Control Module Studs

Courtesy of VOLVO CARS CORPORATION

Locate the two studs for the control module.

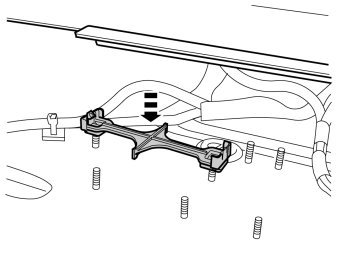

Fig 2: View Of Control Module Holder

Courtesy of VOLVO CARS CORPORATION

Take the holder for the control module from the kit. Press it onto the studs.

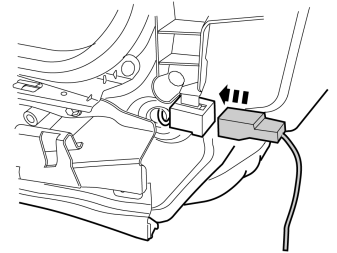

Fig 3: Identifying Cable Harness

Courtesy of VOLVO CARS CORPORATION

Disconnect the light-brown connector that is taped to the car's existing cable harness.

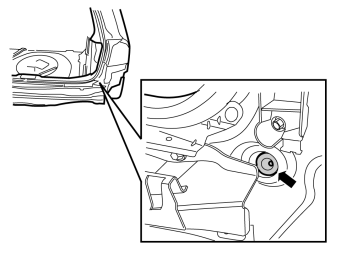

Fig 4: Locating Rubber Plug

Courtesy of VOLVO CARS CORPORATION

Remove the rubber plug.

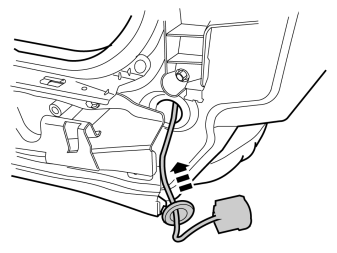

Fig 5: View Of Cable Harness Through Rubber Grommet

Courtesy of VOLVO CARS CORPORATION

Take the cable harness from the kit and route it through the hole. Install the rubber grommet.

Fig 6: Hook Connector To Rail

Courtesy of VOLVO CARS CORPORATION

Hook the connector onto the rail

Fig 7: Identifying Control Module Connectors

Courtesy of VOLVO CARS CORPORATION

Take the control module from the kit and connect the connectors.

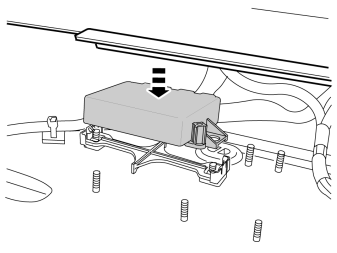

Fig 8: View Of Control Module On The Holder

Courtesy of VOLVO CARS CORPORATION

Press the control module on the holder.

Fig 9: View Of Holders In Position

Courtesy of VOLVO CARS CORPORATION

Check which holders are to be positioned where before installation. Each holder is marked and has its own location.

Fig 10: View Of Tape On Holder

Courtesy of VOLVO CARS CORPORATION

Apply two pieces of tape to the holder.
Remove the protective tape for the tape.

Fig 11: View Of Adhesive To Holder

Courtesy of VOLVO CARS CORPORATION

Apply a thin layer and even layer of adhesive

NOTE:

The adhesive must be above the level for the tape.

CAUTION:

The adhesive must not come into contact with the tape.

Use special tool: 9512950 Adhesive gun.

Use: 1161730 Mixing pipe.

Use: 9511027 Adhesive.

Fig 12: Install The Centering Tool In The Holder

Courtesy of VOLVO CARS CORPORATION

Install the centering tool in the holder.
Install the tool on the bumper cover.
Press the holder towards the casing, but only at the places where there is tape.
Hold the holder securely when removing the centering tool. The holder must be installed horizontally and in line with the bumper cover.
Repeat until all four holders are in place.

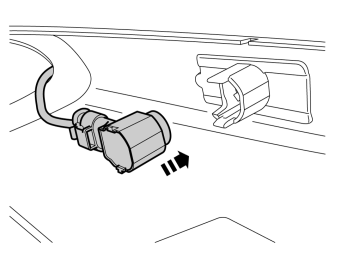

Fig 13: Connect The Cable Harness Connectors To The Sensors

Courtesy of VOLVO CARS CORPORATION

Connect the cable harness connectors to the sensors.

Fig 14: Install The Sensors In Their Holders

Courtesy of VOLVO CARS CORPORATION

Install the sensors in their holders. Take care when installing so that the holder does not release from the tape.

NOTE:

The large gray connector must protrude from the right-hand side of the bumper cover.

Fig 15: Attach The Cable Holders

Courtesy of VOLVO CARS CORPORATION

Attach the cable holders to the covers flanges.

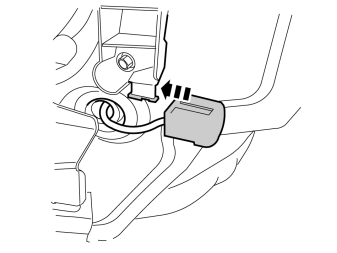

Fig 16: Identifying Connector

Courtesy of VOLVO CARS CORPORATION

Lift up the bumper and connect the connector.

NOTE:

It is recommended that two people carry out this step to prevent damaging the bumper cover.

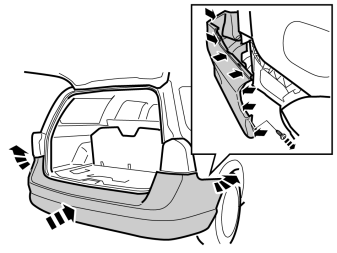

Fig 17: View Of Pressing Bumper Hooks In At Rear Edge

Courtesy of VOLVO CARS CORPORATION

Press the bumper's hooks in at the rear edge. Press all the hooks for the ends into the body.
Reinstall the screws on the front edges of the bumper casing.
Reinstall the plastic nuts at the lower edge.

Fig 18: Identifying VIDA (Service Information) To Program Software

Courtesy of VOLVO CARS CORPORATION

Download software (application) for the accessory's function using VIDA (Volvo scan tool).
