Parking Assistance, Rear: Preparations

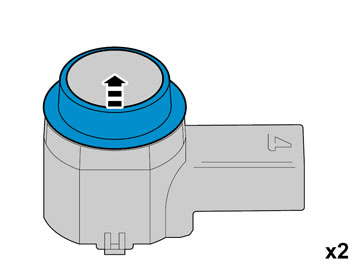

Fig 1: Identifying Rear Parking Assistance Bezel

Courtesy of VOLVO CARS CORPORATION

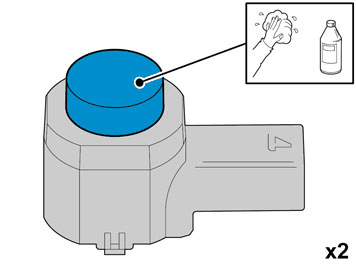

Fig 2: Parking Assistance Sensor Cleaning

Courtesy of VOLVO CARS CORPORATION

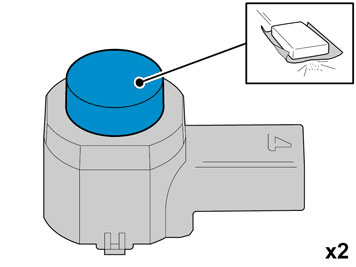

Fig 3: Identifying Glasspaper

Courtesy of VOLVO CARS CORPORATION

Fig 4: Parking Assistance Sensor Cleaning

Courtesy of VOLVO CARS CORPORATION

Fig 5: Protect the Electrical Connectors

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Protect the connections' contact surfaces against paint.

NOTE:

Also read the instructions on the spray can.

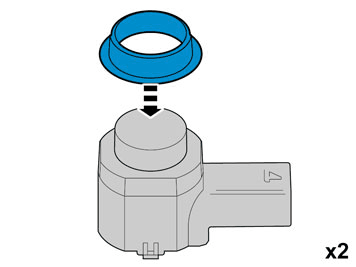

Fig 6: Installing Sensor Bezel

Courtesy of VOLVO CARS CORPORATION

CAUTION:

The paint must have dried after the first application.
