Parking Assistance, Rear: Install

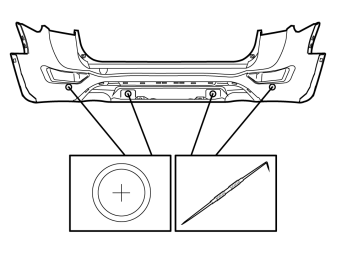

Fig 1: View Of Lower Edge Bumper Cover Markings

Courtesy of VOLVO CARS CORPORATION

Locate the four markings at the lower edge of the bumper cover. Make a mark in the middle using a scriber.

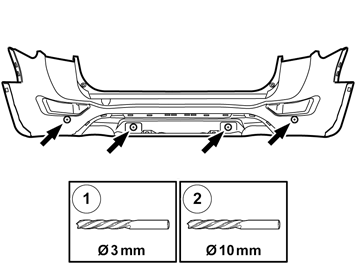

Fig 2: Drill At The Markings

Courtesy of VOLVO CARS CORPORATION

Drill at the markings using a Ø3 mm (1/8") drill bit. Drill from the inside of the bumper cover.
Drill out the holes. Use a Ø10 mm (13/32") diameter drill bit.

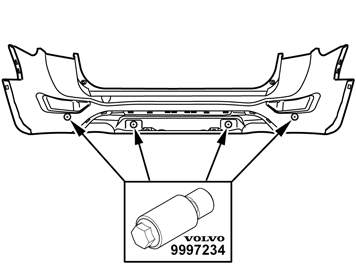

Fig 3: Enlarge The Holes In The Bumper Casing Using Hole Cutter

Courtesy of VOLVO CARS CORPORATION

Enlarge the holes in the bumper casing using hole cutter part no. 9997234 . Place the hole tool's support sleeve on the inside, and the cutting part on the outside of the bumper casing.

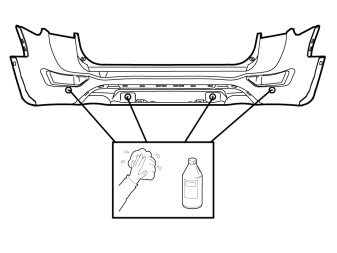

Fig 4: Clean The Lower Inside Of The Bumper Cover

Courtesy of VOLVO CARS CORPORATION

Clean the lower inside of the bumper cover using a mild soap solution.
Clean an area around the holes that is slightly larger than the sensor holder. Use isopropanol. Allow to dry.

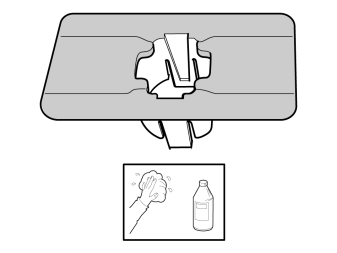

Fig 5: View Of Cleaned Holders

Courtesy of VOLVO CARS CORPORATION

Take four holders from the kit.
Clean the surface of the holders shown in the illustration. Use isopropanol. Allow to dry.

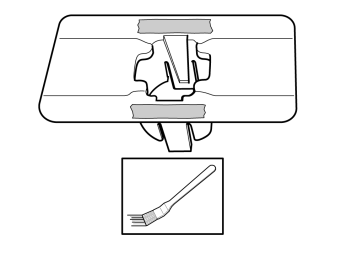

Fig 6: Apply A Thin And Even Coat Of Activator To The Cleaned Surfaces

Courtesy of VOLVO CARS CORPORATION

Apply a thin and even coat of activator to the cleaned surfaces as shown in the illustration. Allow to dry for at least 10 minutes.

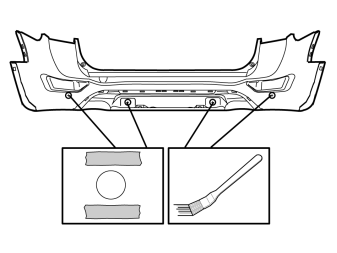

Fig 7: View Of Thin And Even Coat Of Activator On Holder

Courtesy of VOLVO CARS CORPORATION

Apply a thin and even coat of activator to the cleaned surfaces as shown in the illustration. Allow to dry for at least 10 minutes.

APPLIES TO ALL MODELS

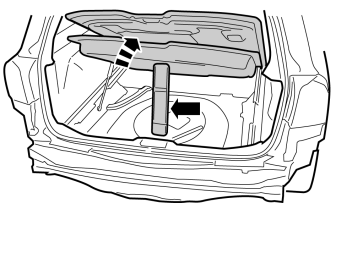

Fig 8: Lift Up Cargo Floor

Courtesy of VOLVO CARS CORPORATION

Lift up the cargo floor and load base plate. Place a support under the base plate.

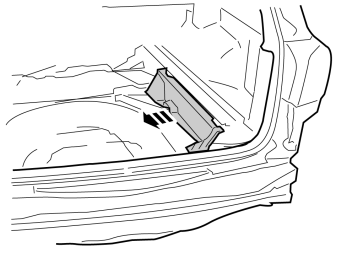

Fig 9: Removing Panel

Courtesy of VOLVO CARS CORPORATION
