Combined Instrument Panel, R-Design

Fig 1: Identifying VIDA (Service Information) To Program Software

Courtesy of VOLVO CARS CORPORATION

Before replacing the Driver information module, programmed data must be read out from the Driver information module. This is done in VIDA (Volvo scan tool). After replacement, the data in question must be programmed in the new Driver information module.

Fig 2: Identifying Ignition Switch Turned To Position 0

Courtesy of VOLVO CARS CORPORATION

NOTE:

Wait at least three minutes before unplugging the connectors or removing other electrical equipment.

Fig 3: Identifying Steering Telescope Lever

Courtesy of VOLVO CARS CORPORATION

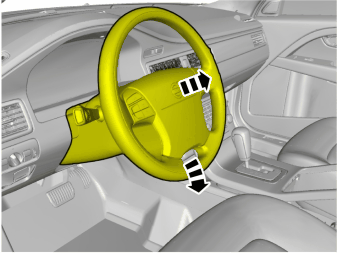

Fig 4: View Of Steering Wheel Pulled Out And Down

Courtesy of VOLVO CARS CORPORATION

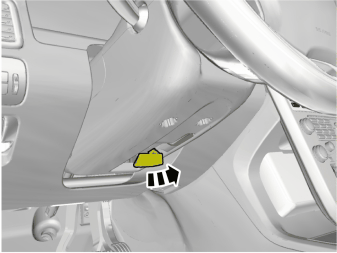

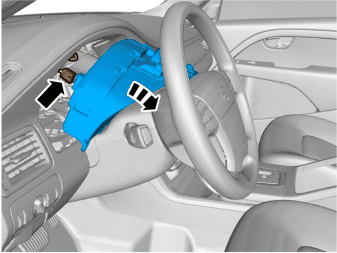

Fig 5: Identifying Steering Column Cover Tabs

Courtesy of VOLVO CARS CORPORATION

Fig 6: Removing Steering Column Cover

Courtesy of VOLVO CARS CORPORATION

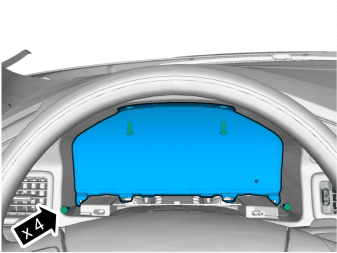

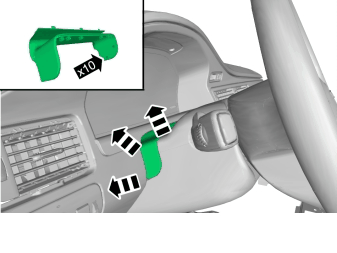

Fig 7: Identifying Instrument Panel Screws

Courtesy of VOLVO CARS CORPORATION

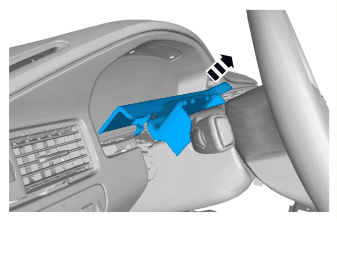

Fig 8: Identifying Instrument Panel Connector

Courtesy of VOLVO CARS CORPORATION

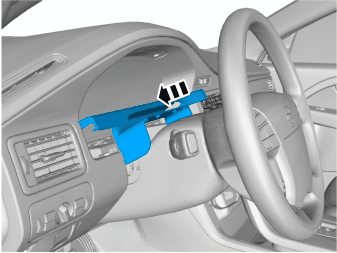

Fig 9: Installing New Instrument Panel

Courtesy of VOLVO CARS CORPORATION

Fig 10: Identifying Instrument Panel Screws

Courtesy of VOLVO CARS CORPORATION

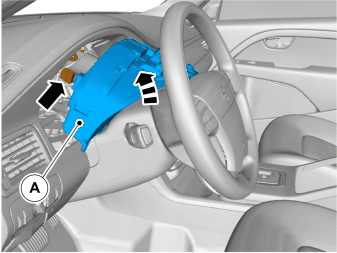

Fig 11: Installing Steering Column Cover

Courtesy of VOLVO CARS CORPORATION

Fig 12: Identifying VIDA (Service Information) To Program Software

Courtesy of VOLVO CARS CORPORATION

Download new software for the Driver information module according to the service information in VIDA (Volvo scan tool). After downloading, data read-out must be programmed. The clock must also be set.
