VVT Unit: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2014 Volvo XC90, 2013 Volvo XC90, 2012 Volvo XC90, 2011 Volvo XC90, and 2010 Volvo XC90. However, it is still accessible from the selected car via links, so may be relevant.

Remove the following items:

air cleaner (ACL) housing, see INTAKE AND EXHAUST SYSTEM - REMOVAL, REPLACEMENT AND INSTALLATION
timing belt, see TIMING BELT
starter motor, see STARTING SYSTEM - REMOVAL, REPLACEMENT AND INSTALLATION

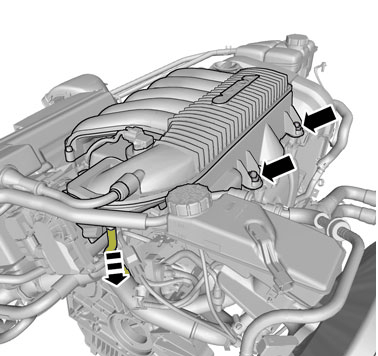

Fig 1: Intake Plenum, Rear View

GLL172724

Courtesy of VOLVO CARS CORPORATION

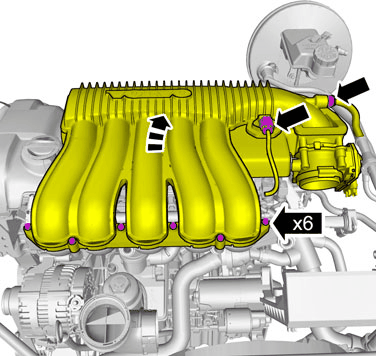

Fig 2: Intake Plenum, Front View

GLL172725

Courtesy of VOLVO CARS CORPORATION

Fig 3: Lift Hook Bolts

GLL172723

Courtesy of VOLVO CARS CORPORATION

Fig 4: Cam Plugs

GLL155206

Courtesy of VOLVO CARS CORPORATION

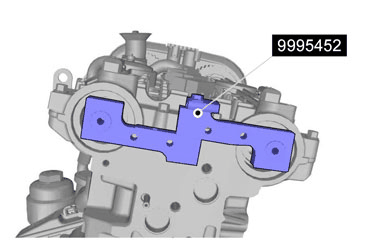

Fig 5: Cam Alignment Tool (9995452) Installed

GLL172772

Courtesy of VOLVO CARS CORPORATION

Fig 6: Installing VVT Units

GLL172774

Courtesy of VOLVO CARS CORPORATION

Replace camshaft seal, see CAMSHAFT SEAL
