VVT Unit: Installation

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2014 Volvo XC90, 2013 Volvo XC90, 2012 Volvo XC90, 2011 Volvo XC90, and 2010 Volvo XC90. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Installing VVT Units

GLL172774

Courtesy of VOLVO CARS CORPORATION

NOTE:

Only tighten the bolts finger tight at this stage.

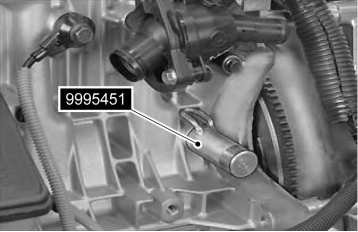

Fig 2: Crankshaft Holder Tool (9995451) Installed

GLL155209

Courtesy of VOLVO CARS CORPORATION

Install timing belt, see TIMING BELT

Fig 3: Torque VVT Unit Bolts to Specification

GLL172776

Courtesy of VOLVO CARS CORPORATION

Torque: VVT unit, center screw

120 Nm

Fig 4: Install Lift Hook, Bolts

GLL172835

Courtesy of VOLVO CARS CORPORATION

Torque: M10
50 Nm
Torque: M6
10 Nm

Install the following items:

starter motor, see STARTING SYSTEM - REMOVAL, REPLACEMENT AND INSTALLATION
timing belt, see TIMING BELT

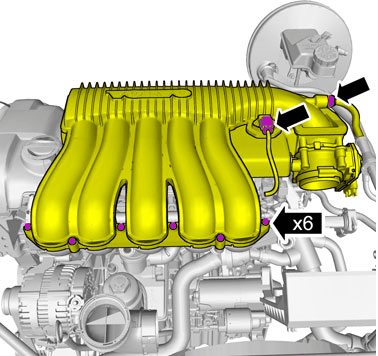

Fig 5: Installing Intake Plenum, Front View

GLL172797

Courtesy of VOLVO CARS CORPORATION

Torque: M6

10 Nm

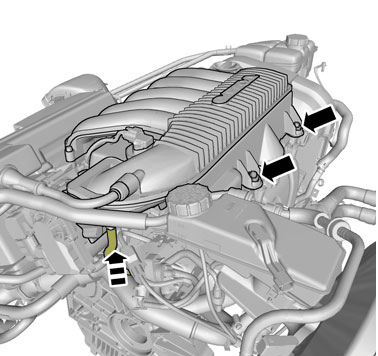

Fig 6: Installing Intake Plenum, Rear View

GLL172796

Courtesy of VOLVO CARS CORPORATION

Torque: M6

10 Nm

Install the air filter housing, see INTAKE AND EXHAUST SYSTEM - REMOVAL, REPLACEMENT AND INSTALLATION
