Position Sensor, Brake Pedal: Removal

Remove the following items:

• battery, see BATTERY 2010, or BATTERY 2008-2009
• Plenum chamber, see PLENUM CHAMBER

Fig 1: Removing/Installing Battery Box

Courtesy of VOLVO CARS CORPORATION

Torque:  M6

10 Nm

Depress and release the brake pedal 3 times.

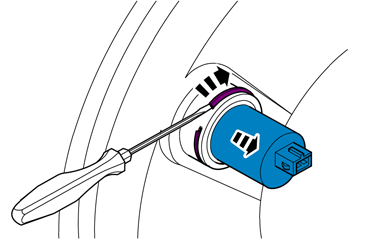

Fig 2: Removing Position Sensor

Courtesy of VOLVO CARS CORPORATION
