Rear Brake Flexible Hose: Removal

Remove the wheel, see WHEELS

Fig 1: Preventing Fluid Escape

Courtesy of VOLVO CARS CORPORATION

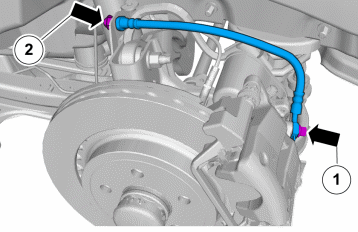

Fig 2: Remove/Install Brake Hose

Courtesy of VOLVO CARS CORPORATION

Remove the following items:

1. Torque:  Brake hose to rear brake caliper

   46 Nm

2. Torque:  Ø6 mm diameter brake line

   14 Nm
