Inflatable Curtain (2009): Removal

Detach the headliner with roof hatch, see HEADLINING WITH SUN ROOF

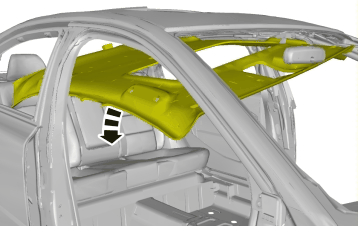

Fig 1: Detaching The Headliner

Courtesy of VOLVO CARS CORPORATION

Battery, disconnection, see BATTERY DISCONNECTING AND CONNECTING

See information regarding the handling of non-deployed pyrotechnical parts, see HANDLING NON-DEPLOYED PYROTECHNICAL PART (2010)

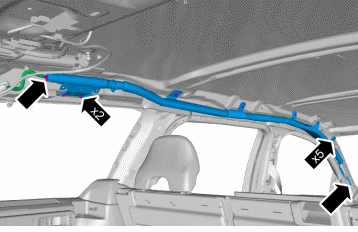

Fig 2: Identifying Inflatable Curtain

Courtesy of VOLVO CARS CORPORATION

Fig 3: Identifying Inflatable Curtain Screws

Courtesy of VOLVO CARS CORPORATION

Torque:  Inflatable curtain to the body

8 Nm
