Driver's Airbag (2008, 2009): Removal

Perform battery disconnecting and connecting, see BATTERY DISCONNECTING AND CONNECTING

Follow instructions about safety information pyrotechnical system, see SAFETY INFORMATION PYROTECHNICAL SYSTEMS

Follow the instructions about positioning safety components. See POSITIONING SAFETY LABELS

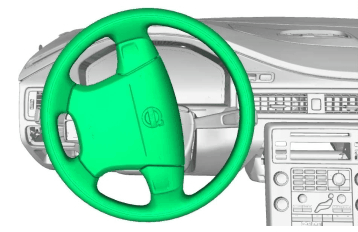

Fig 1: View Of Steering Wheel Position

Courtesy of VOLVO CARS CORPORATION

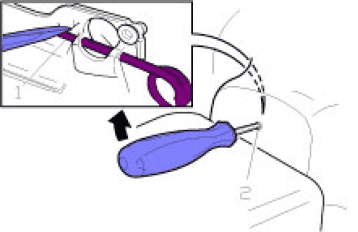

Fig 2: Identifying Release Tab

Courtesy of VOLVO CARS CORPORATION

On both sides.

Perform connector ignition cable, see IGNITER WIRE CONNECTOR

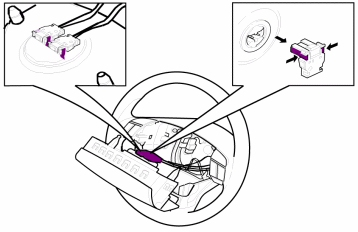

Fig 3: View Of Air Bag Connector

Courtesy of VOLVO CARS CORPORATION
