Belt Roller Middle Rear: Remove

Disconnect the negative battery lead. See BATTERY DISCONNECTING AND CONNECTING

Information about handling and storage of pyrotechnic SRS components. See HANDLING NON-DEPLOYED PYROTECHNICAL PART (2010)

Remove the upholstery.

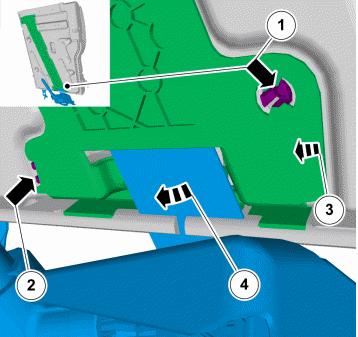

Fig 1: Identifying Middle Rear Belt Roller (1 Of 4)

Courtesy of VOLVO CARS CORPORATION

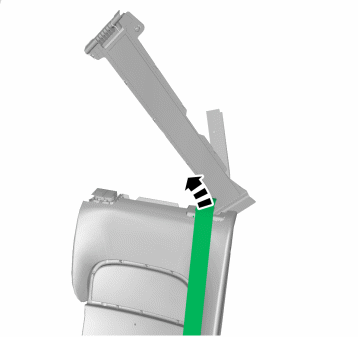

Fig 2: Identifying Middle Rear Belt Roller (2 Of 4)

Courtesy of VOLVO CARS CORPORATION

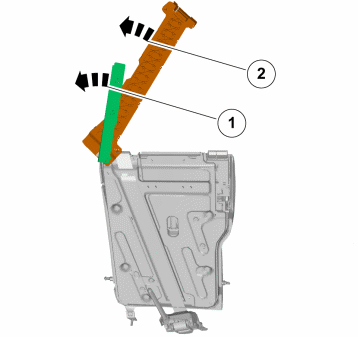

Fig 3: Identifying Middle Rear Belt Roller (3 Of 4)

Courtesy of VOLVO CARS CORPORATION

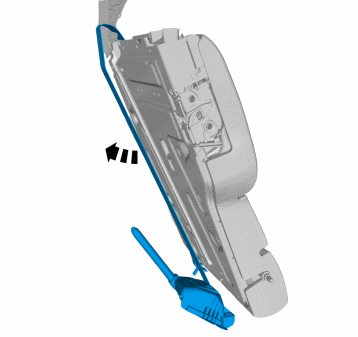

Fig 4: Identifying Middle Rear Belt Roller (4 Of 4)

Courtesy of VOLVO CARS CORPORATION
