Location Of Components

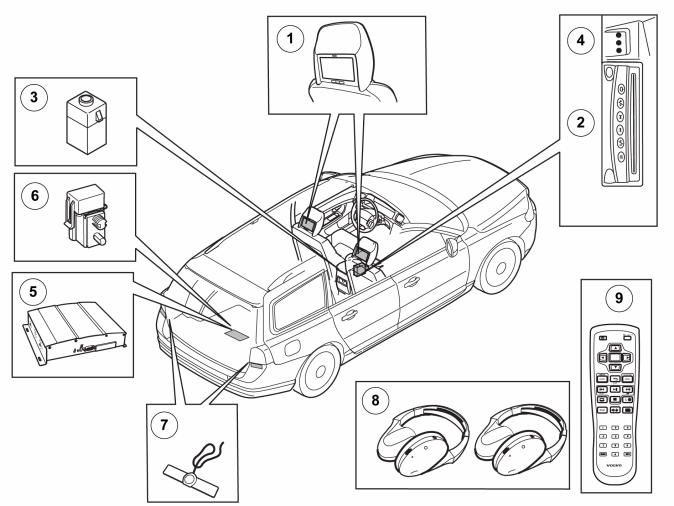

Fig 1: Locating Rear Seat Entertainment System Components
GLL165440Courtesy of VOLVO CARS CORPORATION
  1. Screen, headrest (16/81A, B).
  2. DVD-player with integrated Rear seat entertainment module (RSE) (16/109).
  3. AUX input (16/123.2).
  4. AV-panel (16/123.3).
  5. Digital TV-receiver (DVB-T) (16/36) (if the option is installed).
  6. Fuse holder and fuse for TV receiver (only if TC receiver is installed).
  7. Antennas (left 16/69, right 16/70) (two) for digital TV receiver (only if TV receiver is installed).
  8. Headsets
  9. Remote control
