Location Of Components

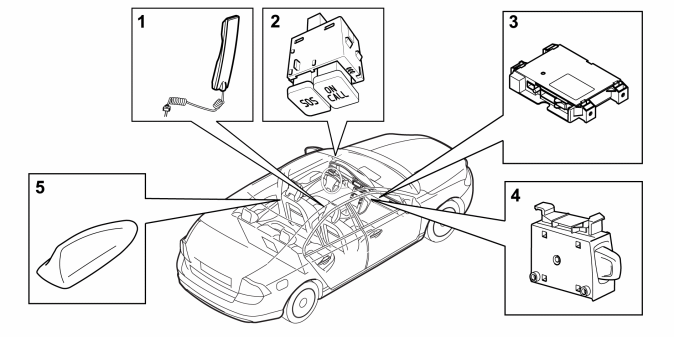

Fig 1: Locating Phone Module (PHM) Components
GLL164200Courtesy of VOLVO CARS CORPORATION
  1. Privacy handset installed in center console.
  2. Switch for Volvo On Call, with integrated auxiliary microphone.
  3. Phone module (PHM), with integrated auxiliary speaker.
  4. The SIM card holder is inside the glove compartment on the left side.
  5. Cellular phone antenna and external global positioning system antenna.
