Testing Passenger Compartment Sensor

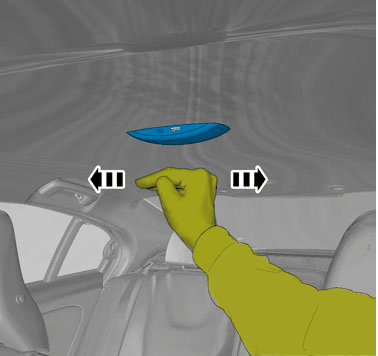

Fig 1: Testing The Motion Sensor In The Passenger Compartment

Courtesy of VOLVO CARS CORPORATION

Testing the motion sensor in the passenger compartment

• Sit in the car. Close all windows.
• Activate the alarm by locking the vehicle using the remote control.
• Wait 15 seconds, until the alarm has activated.
• Deploy the alarm by moving your arms back and forth at the same level as the seat backrest.

  A siren sounds and all hazard warning lights flash.

• Deactivate the alarm by unlocking the vehicle using the remote control.
