Wide Angle Front: Installation

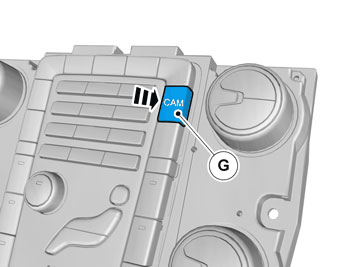

Fig 1: Identifying New Button Cover

GLL176913

Courtesy of VOLVO CARS CORPORATION

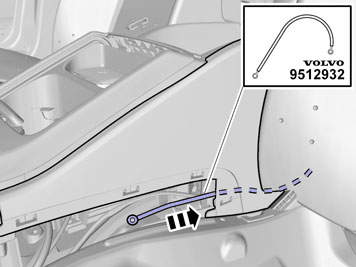

Fig 1: Identifying Service Tool 951 2932

GLL178797

Courtesy of VOLVO CARS CORPORATION

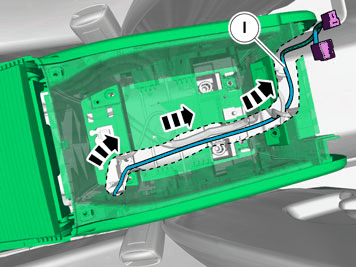

Fig 2: View Of Cable Routing

GLL180825

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that no part of the wiring harness is trapped.

Facilitate cable routing by temporarily raising the floor bracket using a socket or similar.

Pull the wiring through.

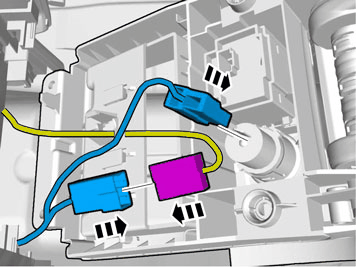

Fig 3: Connect The Connectors

GLL180830

Courtesy of VOLVO CARS CORPORATION

Connect the connectors.

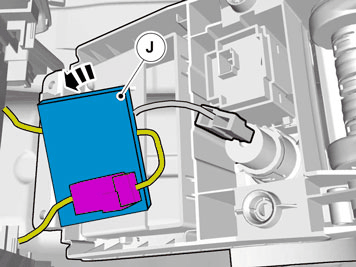

Fig 4: Identifying Excess Foam Tape

GLL180831

Courtesy of VOLVO CARS CORPORATION

Tear off the excess foam tape.

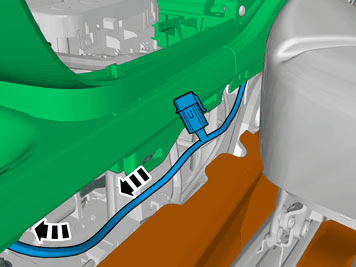

Fig 5: Route The Cable Harness

GLL180839

Courtesy of VOLVO CARS CORPORATION

Route the cable harness to the existing cable harness.

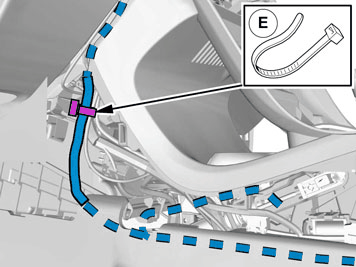

Fig 6: Identifying Cable Ties

GLL176952

Courtesy of VOLVO CARS CORPORATION

Route the cable harness to the existing cable harness.

Pull the wiring through.

Attach the wiring, using clips.

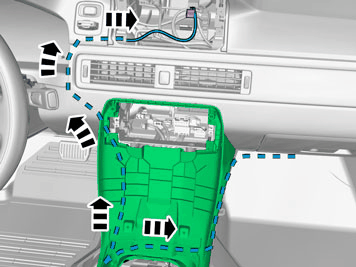

Fig 7: Identifying Cable Routing

GLL180842

Courtesy of VOLVO CARS CORPORATION

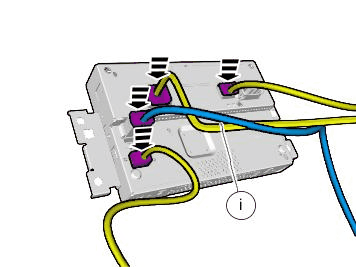

Fig 8: Connect The Connectors

GLL176958

Courtesy of VOLVO CARS CORPORATION

Connect the connectors.

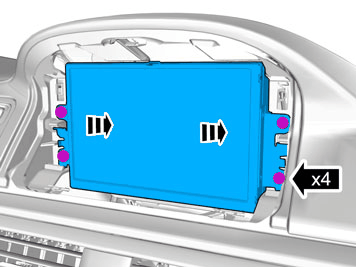

Fig 9: Identifying Component Screws

GLL178708

Courtesy of VOLVO CARS CORPORATION

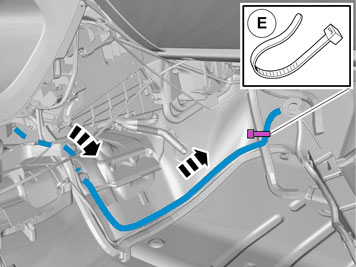

Fig 1: Route The Cable Harness To The Existing Cable Harness

GLL176954

Courtesy of VOLVO CARS CORPORATION

NOTE:

Do not yet tighten the clamps.

Route the cable harness to the existing cable harness.

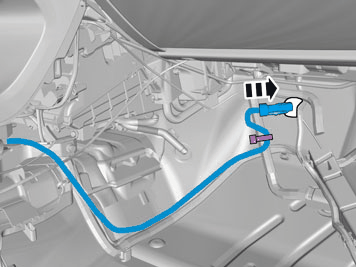

Fig 2: Route Cable Through Hole

GLL176955

Courtesy of VOLVO CARS CORPORATION

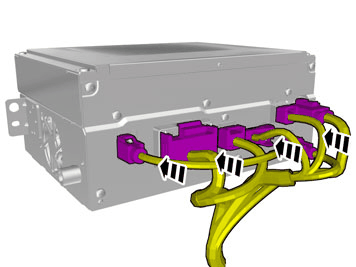

Fig 1: Connect The Connectors

GLL180106

Courtesy of VOLVO CARS CORPORATION

Connect the connectors.

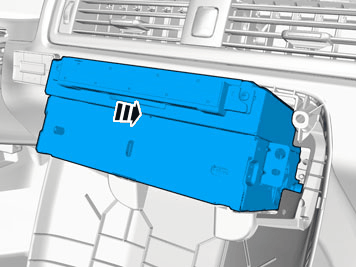

Fig 2: Installing Component

GLL178737

Courtesy of VOLVO CARS CORPORATION

Fig 3: Identifying The Screws

GLL178735

Courtesy of VOLVO CARS CORPORATION

Install the screws.

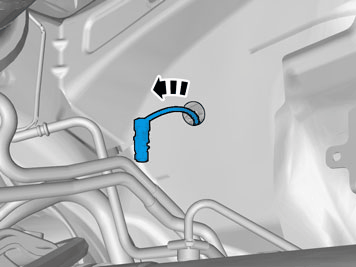

Fig 1: Pulling Wire Through

GLL176972

Courtesy of VOLVO CARS CORPORATION

Pull the wiring through.

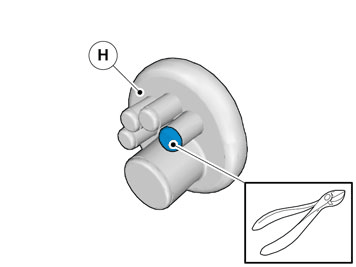

Fig 2: Identifying Cut

GLL176973

Courtesy of VOLVO CARS CORPORATION

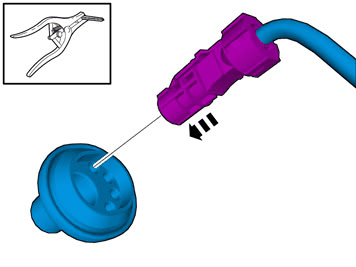

Fig 3: Low Temperature Grease, 1161427

GLL180181

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Take extra care when handling the component.

Use: Low temperature grease, 1161427

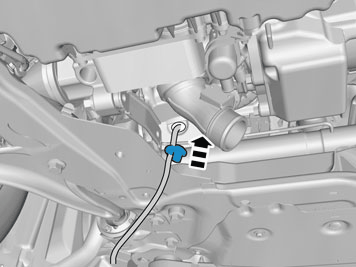

Fig 4: Installing Rubber Grommet

GLL176975

Courtesy of VOLVO CARS CORPORATION

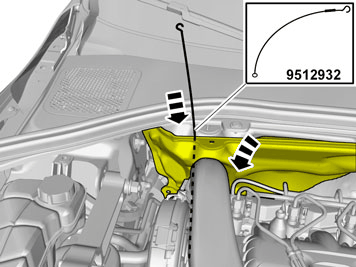

Fig 1: Using Special Tool 9512932

GLL175747

Courtesy of VOLVO CARS CORPORATION

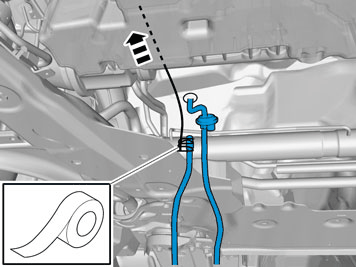

Fig 2: Pull the wiring through

GLL176976

Courtesy of VOLVO CARS CORPORATION

Pull the wiring through.

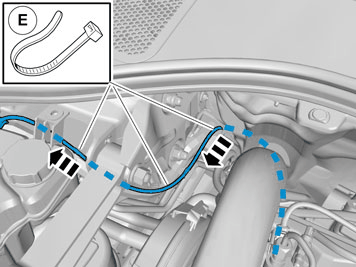

Fig 3: View Of Cable Harness

GLL176977

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure to locate the wiring in such a way that any damage caused by heat or excessive wear is avoided.

NOTE:

Do not yet tighten the clamps.

Route the cable harness to the existing cable harness.

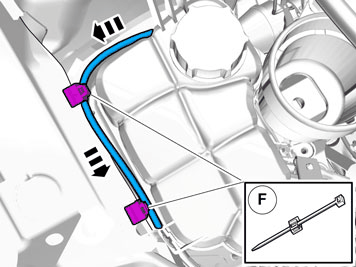

Fig 4: Route The Cable Harness To The Existing Cable Harness

GLL176978

Courtesy of VOLVO CARS CORPORATION

NOTE:

Do not yet tighten the clamps.

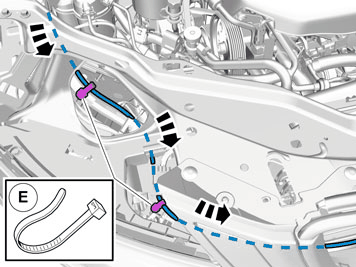

Fig 5: Route The Cable Harness To The Existing Cable Harness

GLL176979

Courtesy of VOLVO CARS CORPORATION

NOTE:

Do not yet tighten the clamps.

Route the cable harness to the existing cable harness.

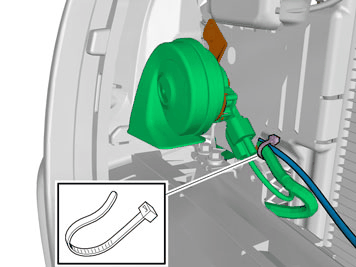

Fig 6: Identifying Cable Ties

GLL180082

Courtesy of VOLVO CARS CORPORATION

NOTE:

Do not yet tighten the clamps.

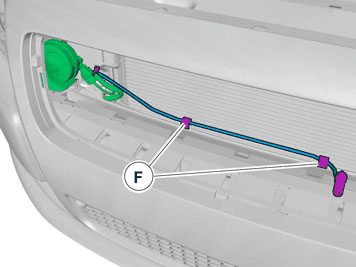

Fig 7: Identifying Clamps

GLL180083

Courtesy of VOLVO CARS CORPORATION

NOTE:

Do not yet tighten the clamps.

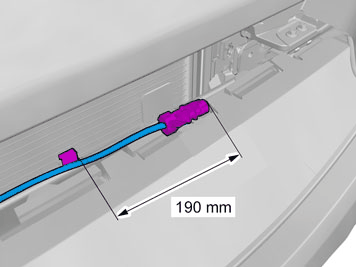

Fig 8: Identifying Cable Length

GLL176981

Courtesy of VOLVO CARS CORPORATION

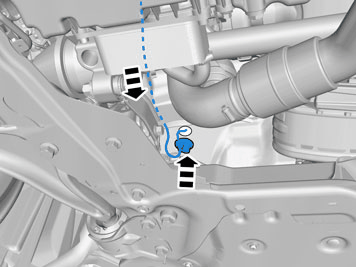

Fig 9: Insert The Cable In To The Passenger Compartment

GLL175701

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure to locate the wiring in such a way that any damage caused by heat or excessive wear is avoided.

Insert the cable in to the passenger compartment, adjust the cable length out into the engine compartment and secure the rubber grommet.

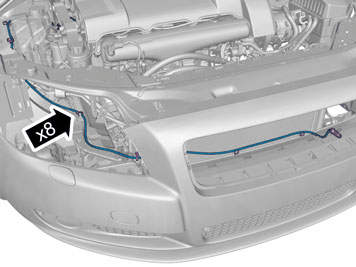

Fig 10: Identifying Wire Clamps

GLL180563

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Tighten clamps properly.

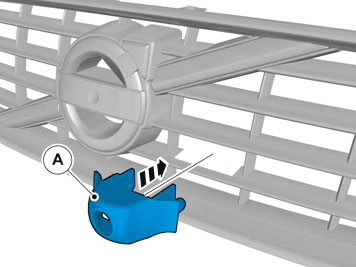

Fig 1: Installing Parking Assistance Camera Frame

GLL180014

Courtesy of VOLVO CARS CORPORATION

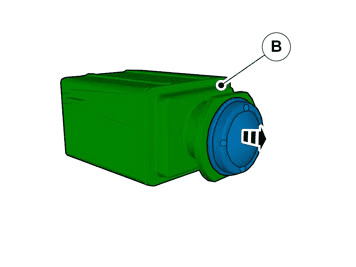

Fig 2: Identifying Parking Assistance Camera

GLL177741

Courtesy of VOLVO CARS CORPORATION

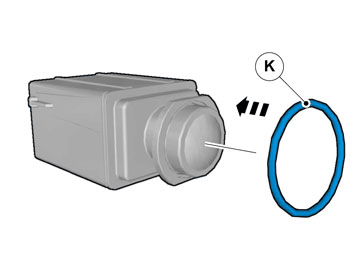

Fig 3: Parking Assistance Camera Bezel

GLL177742

Courtesy of VOLVO CARS CORPORATION

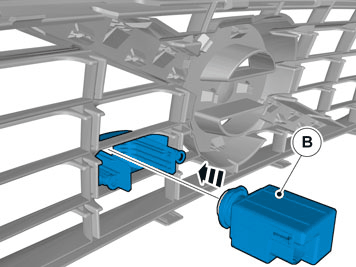

Fig 4: Installing Parking Assistance Camera Into Frame

GLL180024

Courtesy of VOLVO CARS CORPORATION

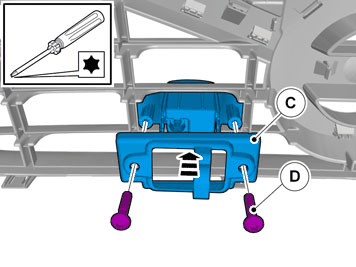

Fig 5: Parking Assistance Camera Screws

GLL180032

Courtesy of VOLVO CARS CORPORATION

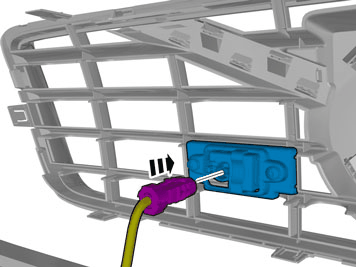

Fig 6: View Of Parking Assistance Camera Connector

GLL180075

Courtesy of VOLVO CARS CORPORATION

Connect the connector.

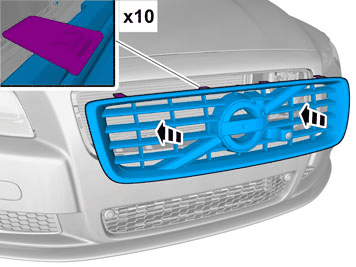

Fig 7: Installing Grille

GLL180105

Courtesy of VOLVO CARS CORPORATION

Fig 8: Connecting The Negative Battery Lead

GLL172830

Courtesy of VOLVO CARS CORPORATION

Reinstall the battery's negative cable.

Reinstall the removed parts in reverse order.

Fig 9: Identifying VIDA (Service Information) To Program Software

GLL156762

Courtesy of VOLVO CARS CORPORATION

Download software (application) for the accessory's function according to the service information in VIDA (Volvo scan tool). See VIDA or the accessories catalogue for software part number.
