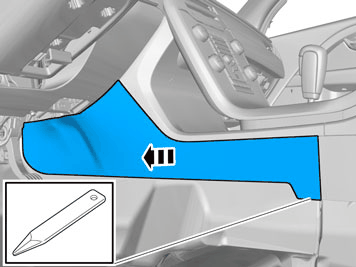

Fig 1: Remove Side Tunnel Console Panel

GLL176000

Courtesy of VOLVO CARS CORPORATION

Remove the panel.

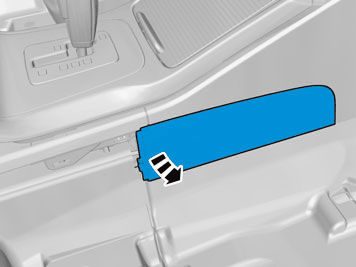

Fig 2: Remove Panel

GLL177043

Courtesy of VOLVO CARS CORPORATION

Remove the panel.

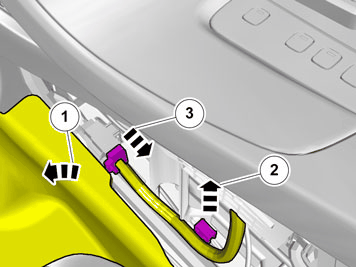

Fig 3: Identifying Cable Harness Clips

GLL175740

Courtesy of VOLVO CARS CORPORATION

Detach the following items:

Fold the carpet to the side.
Unhook the clip(s).
Disconnect the connector.

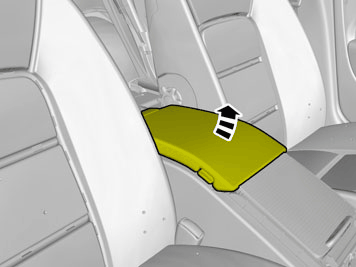

Fig 4: Removing Console Cover

GLL178768

Courtesy of VOLVO CARS CORPORATION

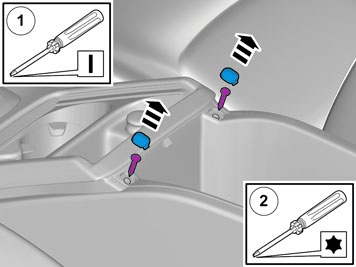

Fig 5: Identifying Screw Covers

GLL178664

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

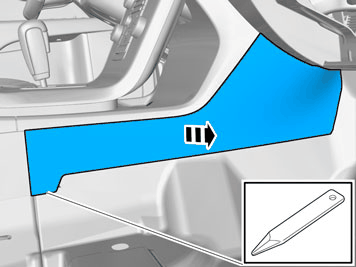

Fig 6: Remove The Panel

GLL177457

Courtesy of VOLVO CARS CORPORATION

Remove the panel.

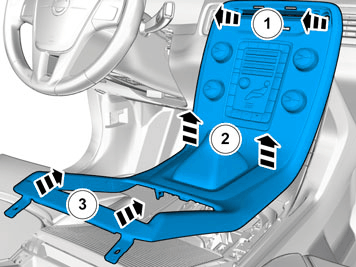

Fig 1: Remove The Panel

GLL178671

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Be careful not to damage the catches.

Remove the panel.

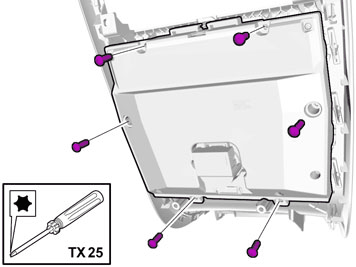

Fig 2: Remove The Screws

GLL175746

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

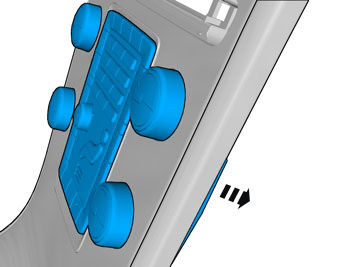

Fig 3: Remove Control Panel

GLL176717

Courtesy of VOLVO CARS CORPORATION

Detach the panel.

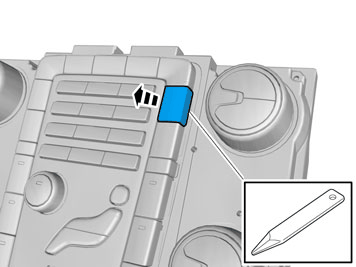

Fig 4: Remove Button Cover

GLL176912

Courtesy of VOLVO CARS CORPORATION
