Metal Pedals: Notes

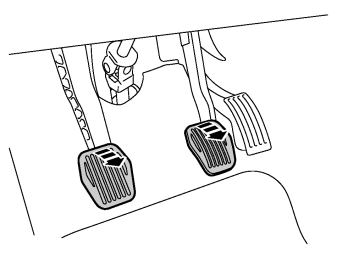

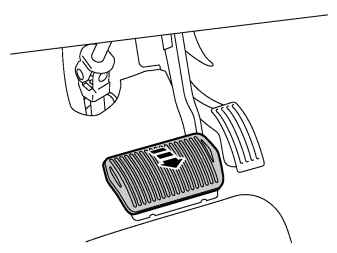

Graphic above applies to cars with manual transmissions. Graphic below applies to cars with automatic transmissions
- Remove the rubber covers from the pedals by grasping the upper edge and pulling backwards.
- Clean, if necessary, all pedal surfaces where the new rubber covers will be positioned.
- Take the accelerator pedal's metal trimmed rubber cover from the kit.
- Hold as shown and fold out the three tabs.
- Hook the cover at the upper edge, at the same time hold the tabs and pull downwards.
- Press the cover firmly onto the pedal.
- Pull the tabs down slightly and check that the edges of the cover surround the pedal edges. Pull the cover to ensure that it is secure.
