Applies To Cars With Manual Transmissions

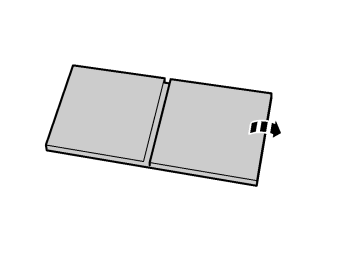

Fig 1: Identifying Spacers

Courtesy of VOLVO CARS CORPORATION

• Take the two spacer washers from the kit.
• Carefully separate the two covers from each other.

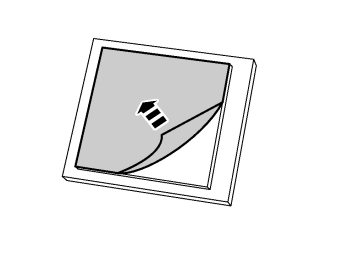

Fig 2: Peeling Protective Film

Courtesy of VOLVO CARS CORPORATION

• Remove the protective film from both covers. Ensure that the surfaces of the pedals are clean.

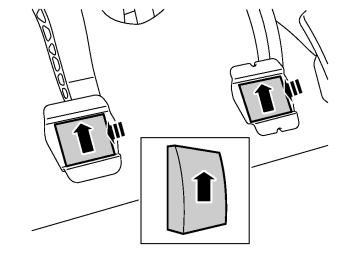

Fig 3: Positioning Covers

Courtesy of VOLVO CARS CORPORATION

• Place the two covers, which have markings, in the recesses on the clutch and brake pedal and press securely. The thicker part of the covers must point downwards.

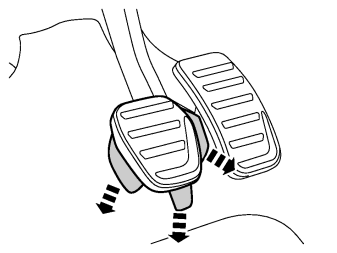

Fig 4: Opening the Tabs

Courtesy of VOLVO CARS CORPORATION

• Take one of the remaining covers from the kit.
• Hold as shown and fold out the three tabs.

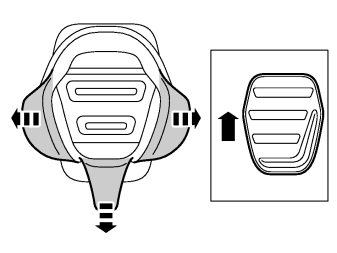

Fig 5: Fitting New Cover

Courtesy of VOLVO CARS CORPORATION

• Hook the cover at the upper edge, at the same time hold the tabs and pull downwards.
• Press the cover firmly onto the pedal.

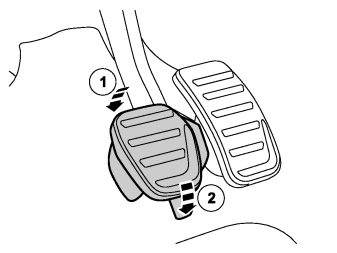

Fig 6: Securing New Cover

Courtesy of VOLVO CARS CORPORATION

• Pull the tabs down slightly and check that the edges of the cover surround the pedal edges. Pull the cover to ensure that it is secure.
• Repeat steps 8-10 for the remaining pedal.
