Skid Plate, Rear Bumper: Notes

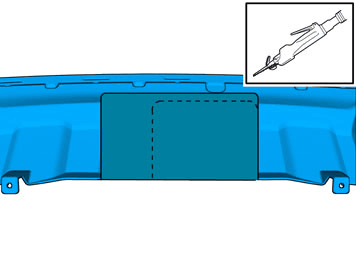

Fig 1: Cutting Out Skid Plate

Courtesy of VOLVO CARS CORPORATION

Applies to cars with a tow hitch

Take the Skid plate from the kit.
Saw out the new Skid plate according to the markings. Remove the shaded area
Tape the outside to prevent the saw foot from damaging the paint
NOTE: Take extra care not to damage the painted surface of the components.
Smooth off the sawn edges with a fine toothed file.

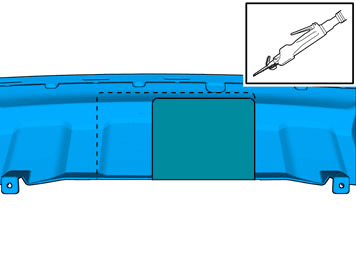

Fig 2: Sawing Out New Skid Plate

Courtesy of VOLVO CARS CORPORATION
