Switches Climate Control Unit, Replacing: Removal

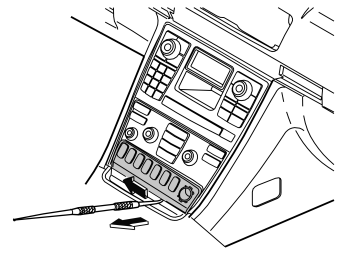

Fig 1: Remove The Switch Panel
GLL103548Courtesy of VOLVO CARS CORPORATION

Remove the switch panel as illustrated.

Fig 2: Press Out The Switch
GLL104981Courtesy of VOLVO CARS CORPORATION

Press out the switch (1).
