Throttle Body, Cleaning

Remove the throttle body. See THROTTLE BODY

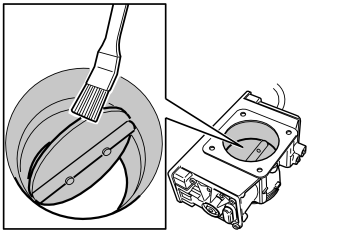

Fig 1: Cleaning agent, 1161826

Courtesy of VOLVO CARS CORPORATION

Clean throttle body with brush. Use:  Cleaning agent, 1161826

Make sure that all deposits are removed from marked surfaces.

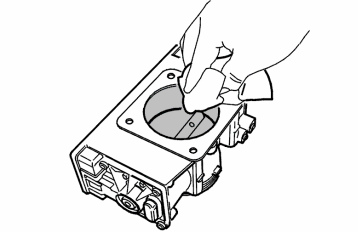

Fig 2: Wiping Clean Air Duct On Both Sides Of Throttle Disc

Courtesy of VOLVO CARS CORPORATION

Carefully wipe clean the air duct on both sides of the throttle disc. Also wipe clean the edge of the throttle disc.

Install throttle body. See THROTTLE BODY
