Removing The Cover Over The Air Cleaner (ACL)

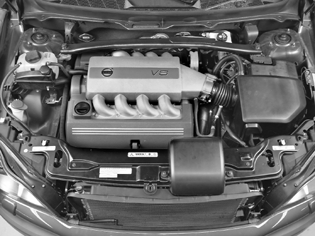

Fig 1: Viewing Under the Hood

GLL150085

Courtesy of VOLVO CARS CORPORATION

Remove the cover over the air cleaner (ACL) by pulling it straight up.
