Installing The Test Pressurizing Equipment

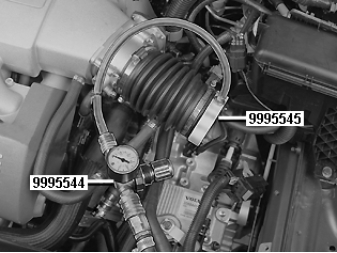

Fig 1: Installing The Test Pressurizing Equipment
GLL150697Courtesy of VOLVO CARS CORPORATION

Install tool see 9995545 with pressure regulator see 9995544 on the fresh air intake hose and tighten the hose clamp.

CAUTION:

Remove the oil filler cap.
