Wheel Hub Rear, Checking: Check

Fig 1: Identifying Special Service Tools

Courtesy of VOLVO CARS CORPORATION

Remove brake disc rear, ee, see REAR BRAKE DISC

Fig 2: Identifying Special Service Tool

Courtesy of VOLVO CARS CORPORATION

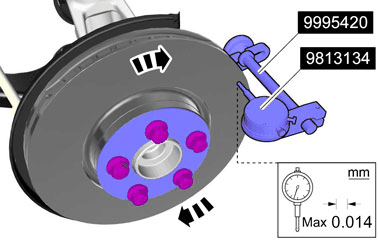

Fig 3: Measuring Run Out

Courtesy of VOLVO CARS CORPORATION

Slowly rotate the brake disc and note the dial indicator gauge readings.

NOTE:

The following steps are only necessary when installing a new component.

Replace wheel hub rear, see REAR WHEEL HUB

Perform brake disc rear, checking, see BRAKE DISC REAR, CHECKING
