Wheel Hub Front, Checking: Installation

INSTALLING THE BRACKET

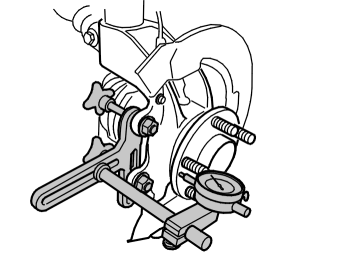

Fig 1: Identifying Installation of Bracket

Courtesy of VOLVO CARS CORPORATION

Use the M12x40 wing screws and the M12 nuts from the kit see 9995418 .

MEASURING LATERAL RUN-OUT

Fig 2: Identifying Dial Gauge Installed

Courtesy of VOLVO CARS CORPORATION

Install the dial gauge in the bracket. See

Put the test gauge point against the hub flange as illustrated.

Rotate the hub gently.

Note the test gauge run-out. Hub maximum lateral run-out: 0.020 mm.

If the maximum lateral run-out exceeds this value, replace the front wheel bearing.

To replace the bearing, See WHEEL BEARINGS AND WHEEL HUBS, FRONT .
