Signal Specification
General
All the values given below are between the respective terminal in column 1 and terminal #C1:30 in column 2 (power ground) unless otherwise stated in brackets after the table entry.
NOTE:
It is important to connect the breakout box and check the ground terminals before taking readings.
| U= | DC voltage in volts (V) | UAC = | AC voltage in volts (V) |
| Ubat = | Battery voltage (V) | f = | Frequency in Hertz (Hz) |
| Ulow = | Voltage approximately 0 V | t = | Time in seconds |
| PWM = | Pulse width modulated signal in % | % duty = | Duty cycle (pulse ratio) in percent (%) |
SIGNAL TABLE

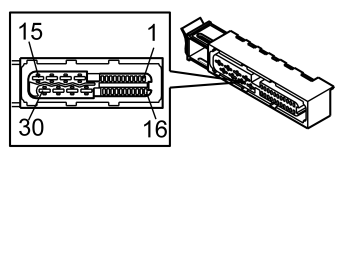

| Breakout box terminal | Control module terminal | Signal type | Ignition off Active/Inactive | Ignition on Active/Inactive | Other |
|---|---|---|---|---|---|
| #1 | #C1:1 | - | - | - | - |
| #2 | #C1:2 | - | - | - | - |
| #3 | #C1:3 | - | - | - | - |
| #4 | #C1:4 | - | - | - | - |
| #5 | #C1:5 | - | - | - | - |
| #6 | #C1:6 | - | - | - | - |
| #7 | #C1:7 | - | - | - | - |
| #8 | #C1:8 | - | - | - | - |
| #9 | #C1:9 | Parking brake switch terminal C1:4 | U>4.3 V/<0.8 V | U>4.3 V/<0.8 V | Input |
| #10 | #C1:10 | Parking brake switch terminal C1:5 | U>4.3 V/<0.8 V | U>4.3 V/<0.8 V | Input |
| #11 | #C1:11 | Parking brake switch terminal C1:8 | U>4.3 V/<0.8 V | U>4.3 V/<0.8 V | Output, f=25 Hz 33 % duty |
| #12 | #C1:12 | Right motor terminal C1:1 | Ubat -Ulow /Ulow -Ubat | Ubat -Ulow /Ulow -Ubat | 20 - 35 A upon activation. |
| #13 | #C1:13 | 30-feed | Ubat /Ubat | Ubat /Ubat | 20 - 35 A upon activation. |
| #14 | #C1:14 | Left motor terminal C1:1 | Ubat -Ulow /Ulow -Ubat | Ubat -Ulow /Ulow -Ubat | 20 - 35 A upon activation. |
| #15 | #C1:15 | 30-feed | Ubat /Ubat | Ubat /Ubat | 20 - 35 A upon activation. |
| #16 | #C1:16 | Control modules communication cable (CAN H) | U=2.3 - 3.5 V | U=2.3 - 3.5 V | During communication |
| #17 | #C1:17 | Control modules communication cable (CAN L) | U=1.5 - 2.5 V | U=1.5 - 2.5 V | During communication |
| #18 | #C1:18 | Parking brake switch terminal C1:7 | U>4.3 V/<0.8 V | U>4.3 V/<0.8 V | Output, f=25 Hz 33 % duty |
| #19 | #C1:19 | Parking brake switch terminal C1:6 | U>4.3 V/<0.8 V | U>4.3 V/<0.8 V | Input |
| #20 | #C1:20 | Parking brake switch terminal C1:3 | U>4.3 V/<0.8 V | U>4.3 V/<0.8 V | Output, f=25 Hz 33 % duty |
| #21 | #C1:21 | - | - | - | - |
| #22 | #C1:22 | - | - | - | - |
| #23 | #C1:23 | - | - | - | - |
| #24 | #C1:24 | - | - | - | - |
| #25 | #C1:25 | - | - | - | - |
| #26 | #C1:26 | - | - | - | - |
| #27 | #C1:27 | Right motor terminal C1:2 | Ulow -Ubat /Ignition switch position UII bat -Ulow | Ulow -Ubat /Ignition switch position UII bat -Ulow | 20 - 35 A upon activation. |
| #28 | #C1:28 | Power ground | U low /Ulow | U low /Ulow | 20 - 35 A upon activation. |
| #29 | #C1:29 | Left motor terminal C1:2 | Ulow -Ubat /Ignition switch position UII bat -Ulow | Ulow -Ubat /Ignition switch position UII bat -Ulow | 20 - 35 A upon activation. |
| #30 | #C1:30 | Power ground | U low /Ulow | U low /Ulow | 20 - 35 A upon activation. |
