Wheel Hub Front, Checking: Installation

INSTALLING THE BRACKET

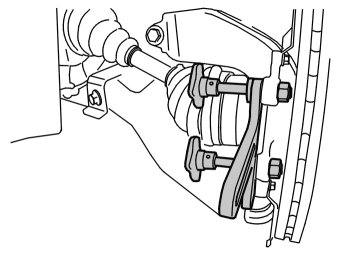

Fig 1: Identifying Installation of Bracket
GLL140764Courtesy of VOLVO CARS CORPORATION

Use the M12x40 wing screws and the M12 nuts from the kit see 9995418 .
