Brake Disc Front, Check: Check

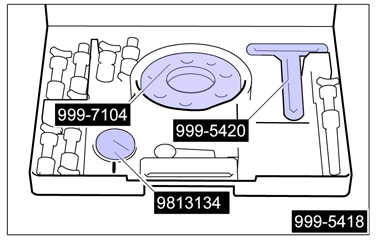

Fig 1: Identifying Special Service Tools

Courtesy of VOLVO CARS CORPORATION

Remove brake calliper, front. See FRONT BRAKE CALIPER

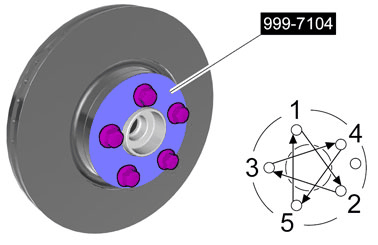

Fig 2: Identifying Tightening Sequence And Area For Cleaning

Courtesy of VOLVO CARS CORPORATION

NOTE: Make sure that the mating faces are clean and free of foreign material.

Torque: M14

130 Nm

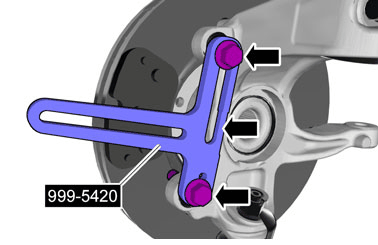

Fig 3: Identifying Special Tool 999 5420

Courtesy of VOLVO CARS CORPORATION

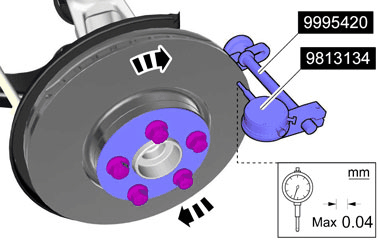

Fig 4: Measuring Disc Runout Using Special Service Tools

Courtesy of VOLVO CARS CORPORATION

Slowly rotate the brake disc and note the dial indicator gauge readings.

NOTE: The following steps are only necessary when installing a new component.

Perform wheel hub front, checking, see WHEEL HUB FRONT, CHECKING

Remove the front brake disc. See FRONT BRAKE DISC
