Diagnostic Trouble Code (DTC) Information CEM-8F26

Condition

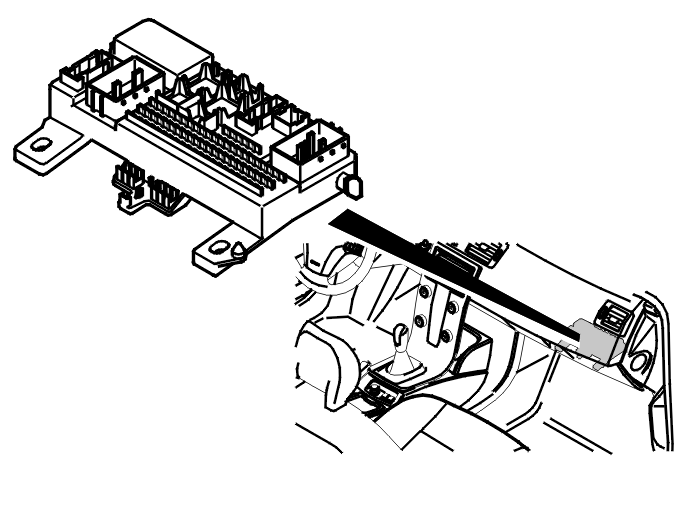

Fig 1: Identifying Central Electronic Module (CEM)

Courtesy of VOLVO CARS OF NORTH AMERICA.

The diagnostic trouble code (DTC) is stored if the central electronic module (CEM) registers an internal fault.

The diagnostic trouble code (DTC) can be diagnosed in ignition positions I or II.

Substitute Value

• None.

Possible Source

• Damaged fuse.
• Internal fault in the control module.

Fault symptom[s]

• Front windshield washing does not work
• The windshield washer motor does not operate.
