Diagnostic Trouble Code (DTC) Information CEM-8F21

Condition

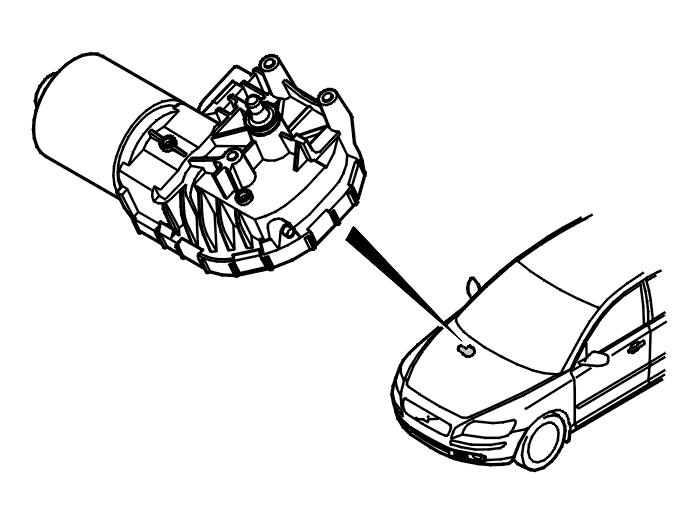

Fig 1: Locating Wiper Motor Module (WMM)

Courtesy of VOLVO CARS OF NORTH AMERICA.

The wiper motor module (WMM) checks the windshield wipers.

The diagnostic trouble code (DTC) is stored if the wiper motor module (WMM) registers an internal fault.

The diagnostic trouble code (DTC) can be diagnosed when the ignition is switched on.

Substitute Value

• None.

Possible Source

• Internal fault
• Damaged wiper motor module (WMM).

Fault symptom[s]

• The windshield wipers are not working.
