Checking Component And Wiring

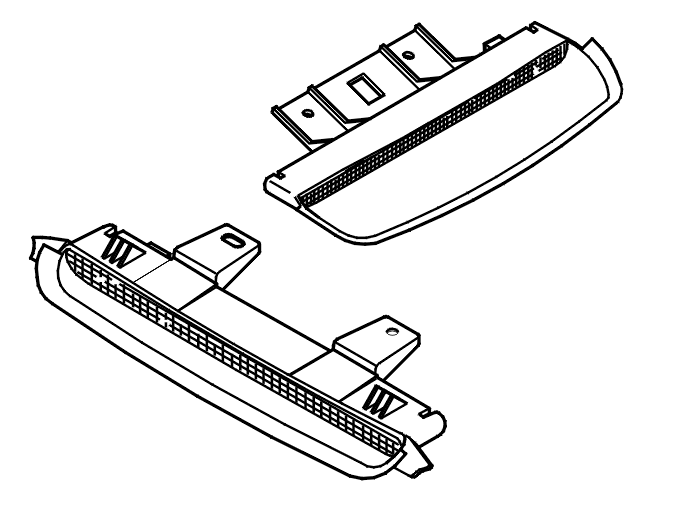

5-doors
Check the voltage on the high level stop lamp connector terminal #1 to the output on the central electronic module (CEM). The voltage must be approximately 12 V when the high level stop lamp is activated.
Check the control signal cable. Check for a short-circuit to ground.
Take readings between:
- Central electronic module (CEM) terminal #C7 (#7) and high level stop lamp connector terminal #1.
Remedy as necessary.
4-doors
Check the voltage on the high level stop lamp connector terminal #1 to the output on the central electronic module (CEM). The voltage must be approximately 12 V when the high level stop lamp is activated.
Check the control signal cable. Check for a short-circuit to ground.
Take readings between:
- Central electronic module (CEM) terminal #C5 (#5) and high level stop lamp connector terminal #1.
Remedy as necessary.
Other information
- see CONNECTING THE BREAKOUT BOX (2004, 2005, 2006, 2007)
- see SIGNAL DESCRIPTION CENTRAL ELECTRONIC MODULE (CEM) (2004, 2005, 2006, 2007)
- see CONTROL MODULE RELAY BOX PASSENGER COMPARTMENT
- see CONTENTS
- Continue
Refer to VERIFICATION
