Checking Component

Check that the left-hand gas discharge lamp module (GDL) has not been installed on the right-hand side.

If a new gas discharge lamp module (GDL) has been installed, the vehicle information must be programmed and the position sensor must be calibrated.

To program the gas discharge lamp module (GDL) with vehicle parameters and to calibrate the position sensor, see CALIBRATION OF POSITION SENSOR, GDL LAMPS .

Remedy as necessary.

Other information

• see CONNECTING THE BREAKOUT BOX (2004, 2005, 2006, 2007)
• see SIGNAL DESCRIPTION CENTRAL ELECTRONIC MODULE (CEM) (2004, 2005, 2006, 2007)
• see LOCATION OF COMPONENTS (2004, 2005, 2006, 2007)
• see CONTROL MODULE RELAY BOX PASSENGER COMPARTMENT
• see HEADLAMP BALLAST (XENON) (2004, 2005, 2006, 2007)
• see CHECKING WIRING AND TERMINALS

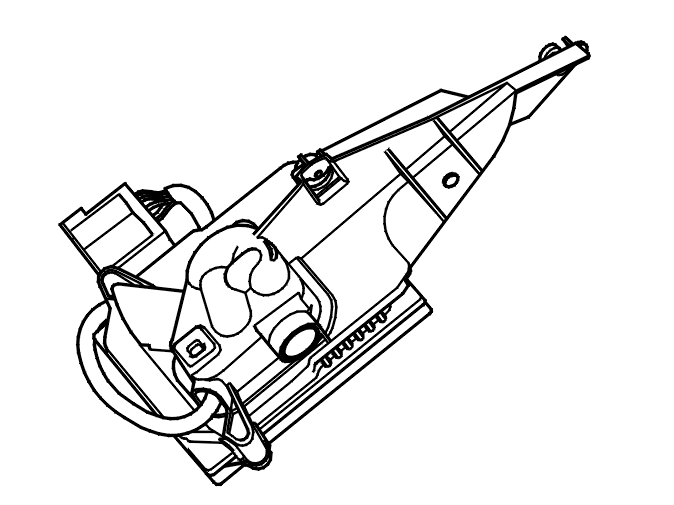

Fig 1: Identifying Right-Hand Gas Discharge Lamp Module

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Continue

  Refer to VERIFICATION
