Function Test

• Press the switch for reduced alarm

  A message must be displayed in the driver information module (DIM) that the reduced alarm function is activated. The indicator lamp on the switch must also be lit.

  Read off whether the function is activated by clicking on the VCT2000 symbol.

  Fig 1: Identifying VCT2000 Diagnostic Tool Symbol In VIDA

  Courtesy of VOLVO CARS OF NORTH AMERICA.

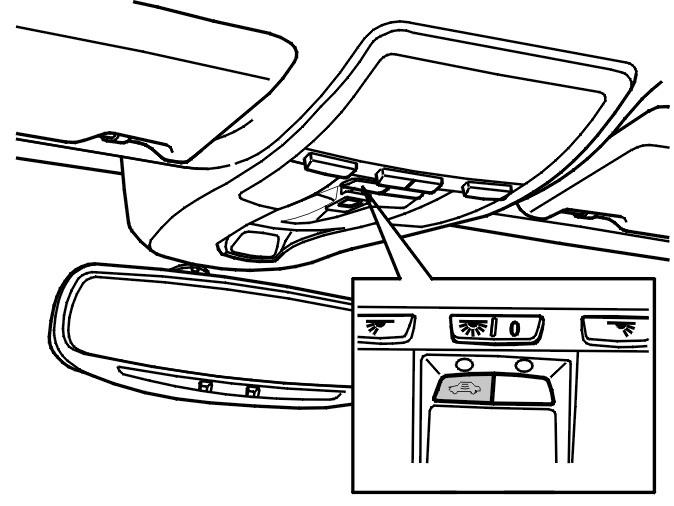

  Fig 2: Identifying Switch For Reduced Alarm

  Courtesy of VOLVO CARS OF NORTH AMERICA.

Is the function activated?

• YES

  Refer to FAULT-TRACING INFORMATION

• NO

  Refer to CHECKING WIRING
