Active On Demand Coupling Fluid Level Check (2009): Installation: Overview

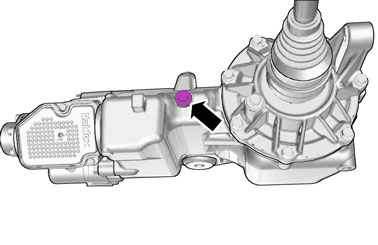

Fig 1: Identifying Active On-Demand Coupling Fluid Plug
GLL170401Courtesy of VOLVO CARS OF NORTH AMERICA.

Torque:  Oil plug, Active On-Demand Coupling

35 Nm
