Active On Demand Coupling Fluid Level Check (2009): Filling: Overview

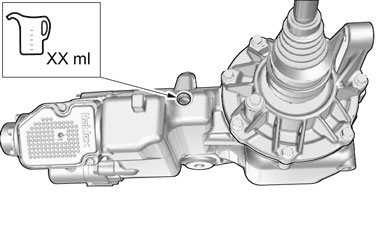

Fig 1: Identifying Transmission Oil, 30759648
GLL170403Courtesy of VOLVO CARS OF NORTH AMERICA.
CAUTION:

The fluid must be allowed to escape until a continuous flow changes into single drops.

Use:  Transmission oil, 30759648
