Brake Pads Rear: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove the wheel see WHEELS

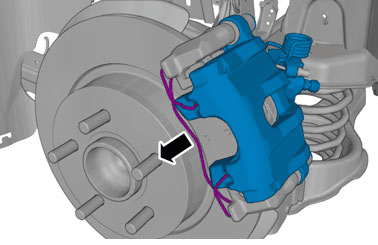

Fig 1: Removing Anti Rattle Spring

Courtesy of VOLVO CARS OF NORTH AMERICA.

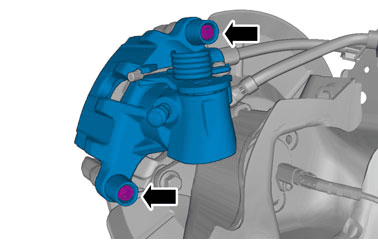

Fig 2: Identifying Caliper Slide Pins

Courtesy of VOLVO CARS OF NORTH AMERICA.

Torque: Slide rail rear brake caliper

35 Nm

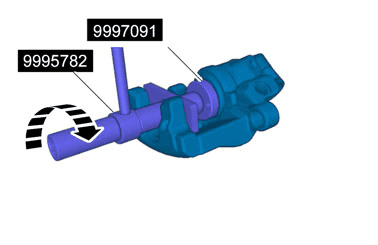

Fig 3: Caliper Piston Returned Using Special Tool

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 4: Identifying Sliding Surfaces

Courtesy of VOLVO CARS OF NORTH AMERICA.

CAUTION:

Make sure that the mating faces are clean and free of foreign material.
