Cover Bumper Rear: Removal

NOTE:

Removal steps in this procedure may contain installation details.

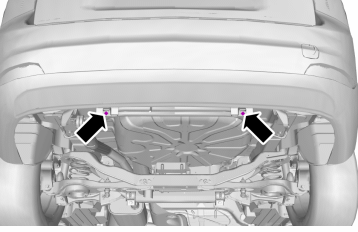

Fig 1: Locating Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

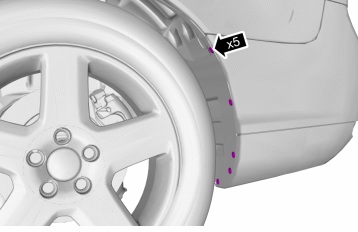

Fig 2: Locating Wheel Arch Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

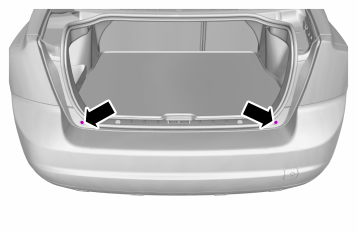

Fig 3: Locating Rear Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

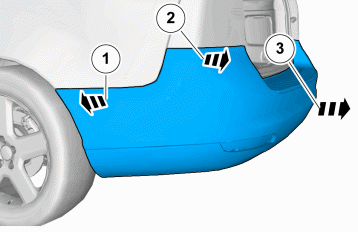

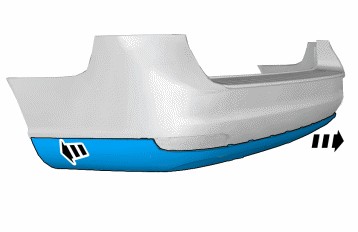

Fig 4: Detaching Bumper

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE:

This step requires assistance from another technician.

Fig 5: Locating Clip

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 6: Detaching Spoiler

Courtesy of VOLVO CARS OF NORTH AMERICA.

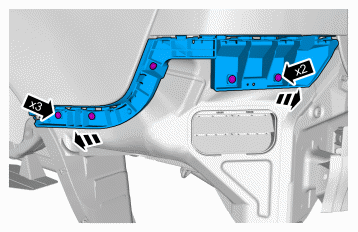

Fig 7: Locating Side Bracket Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.
