Cover Bumper Front: Removal

NOTE:

Removal steps in this procedure may contain installation details.

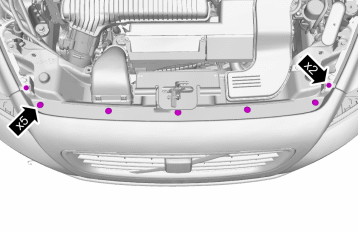

Fig 1: Locating Clips And Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

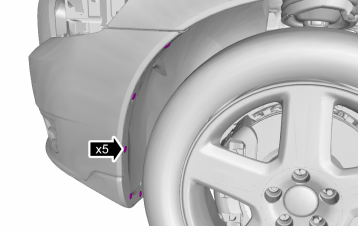

Fig 2: Locating Wheel Arch Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

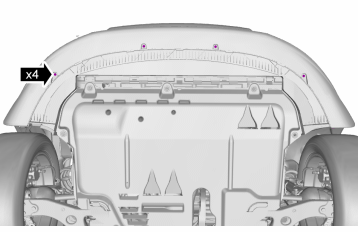

Fig 3: Locating Air Baffle Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

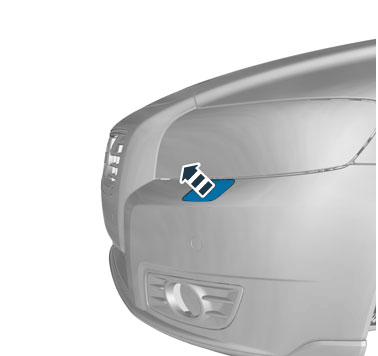

Fig 4: Identifying Washer Jet Cover

Courtesy of VOLVO CARS OF NORTH AMERICA.

On both sides.

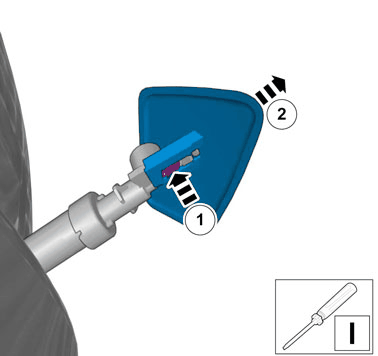

Fig 5: Identifying Washer Jet And Cover

Courtesy of VOLVO CARS OF NORTH AMERICA.

On both sides.

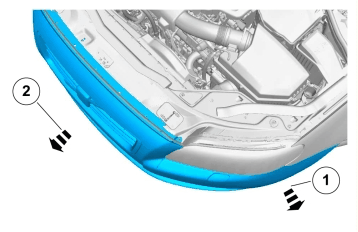

Fig 6: Removing Bumper

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE:

This step requires the aid of another technician.

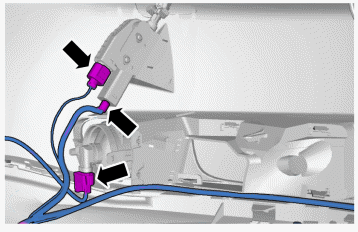

Fig 7: Identifying Connectors

Courtesy of VOLVO CARS OF NORTH AMERICA.

WARNING:

Be prepared to collect escaping fluid.

Remove the radiator masking see RADIATOR GRILLE

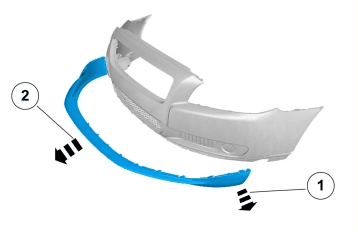

Fig 8: Identifying Spoiler

Courtesy of VOLVO CARS OF NORTH AMERICA.

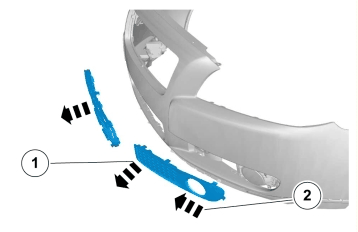

Fig 9: Identifying Fog Light Cover

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the following items:

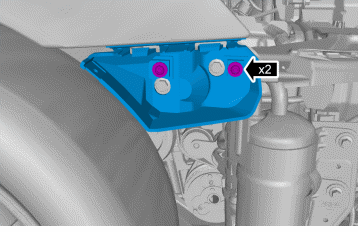

Fig 10: Locating Side Bracket Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Torque: Bracket to front fender

6 Nm

Remove the headlamp see HEADLAMPS

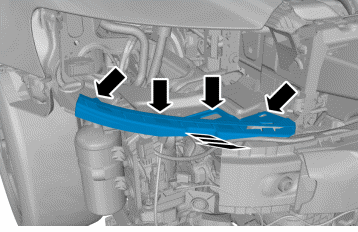

Fig 11: Removing Bracket

Courtesy of VOLVO CARS OF NORTH AMERICA.
