Replacing The Upper Mounting Brackets

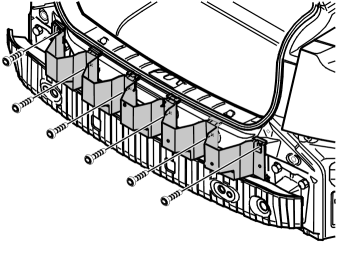

Fig 1: Locating Upper Mounting Bracket Screws
Courtesy of VOLVO CARS OF NORTH AMERICA.
Removal
Slacken off the 6 screws.
Installation
Tighten the 6 screws.
