Removing The Rear Bumper Cover

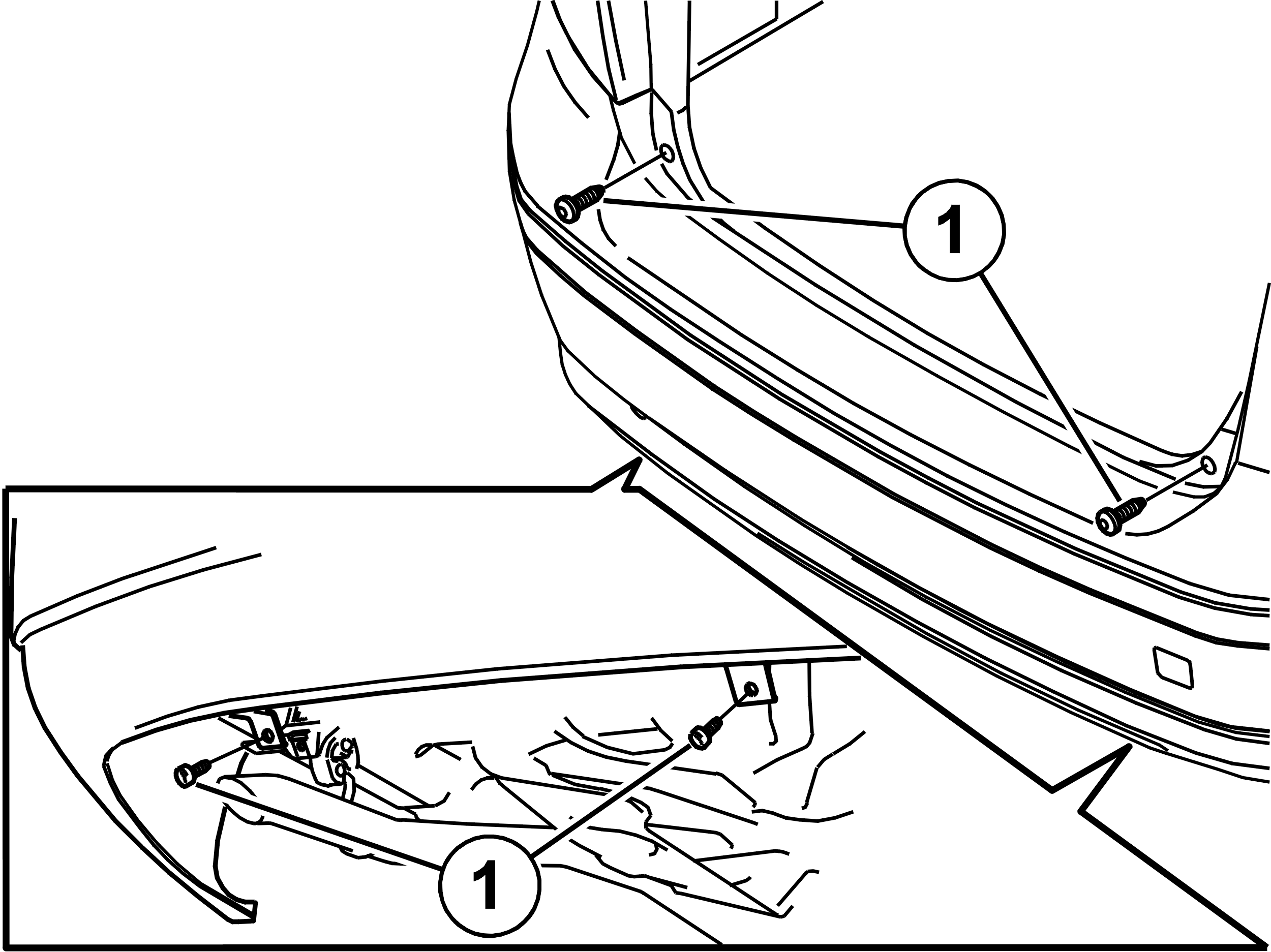

Fig 1: Locating Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the 4 screws (1) in the bottom edge of the bumper cover and at the sides in the trunk opening.

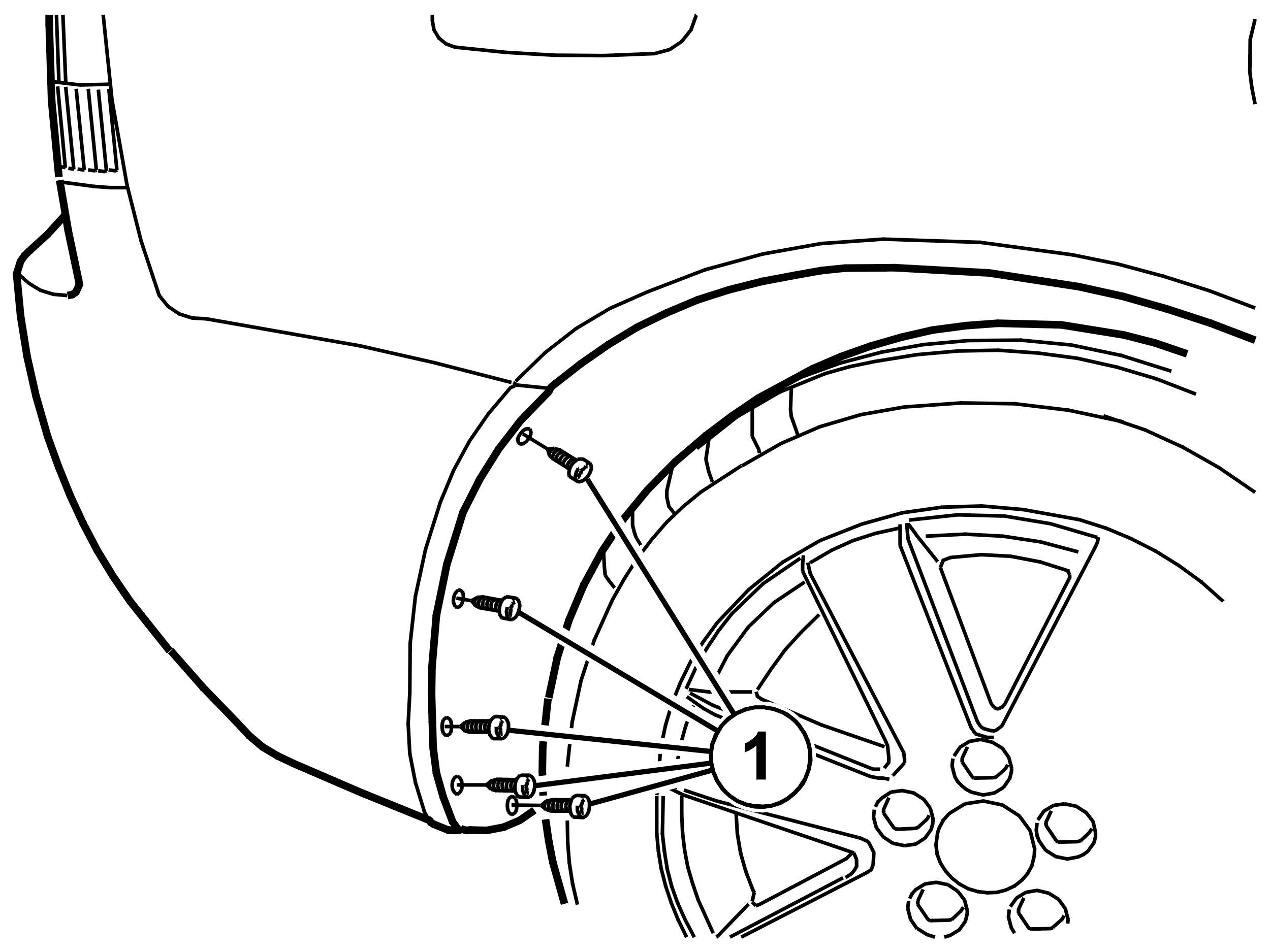

Fig 2: Locating Wheel Arch Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

• the 5 screws (1) per wheel arch.

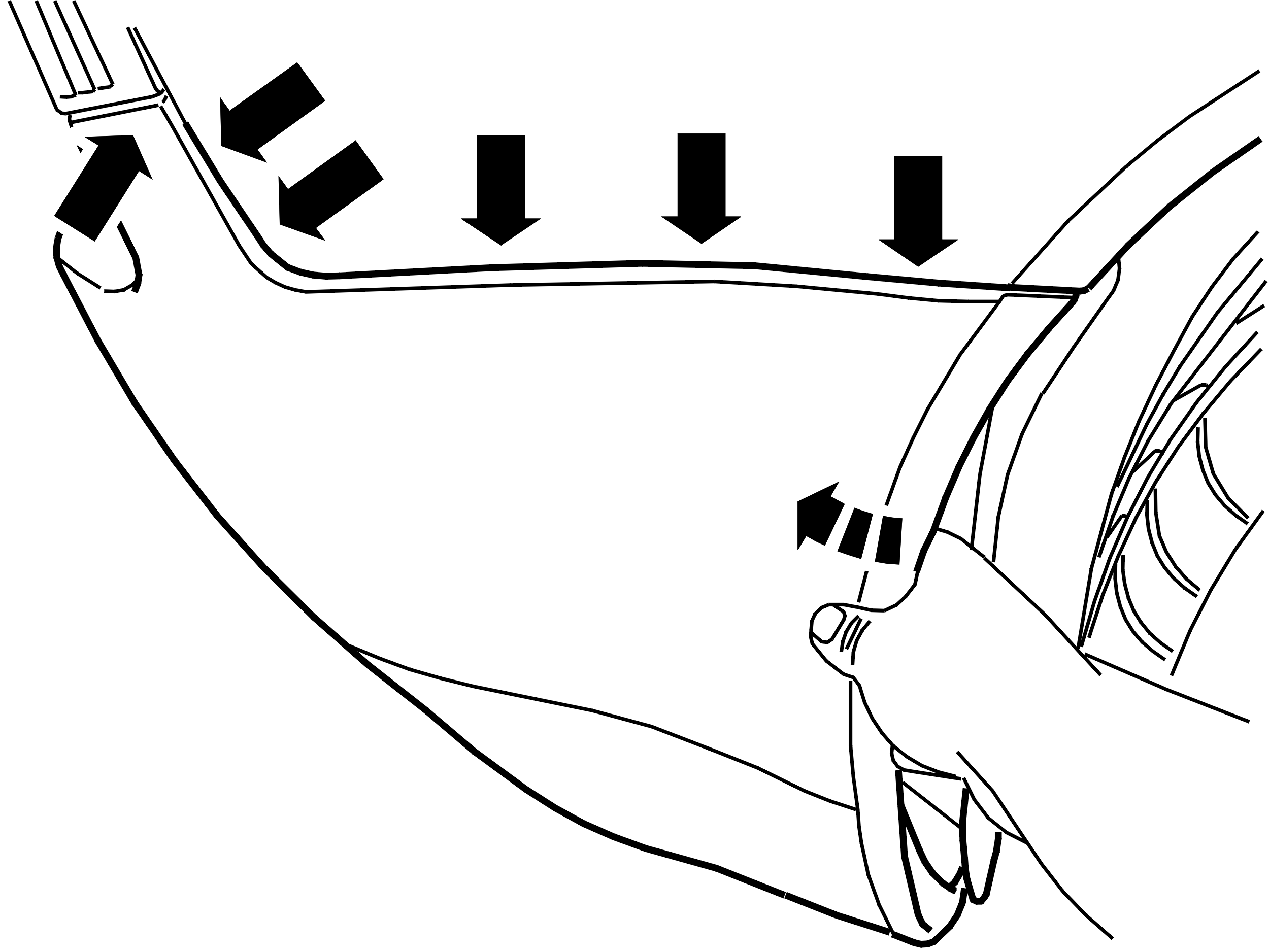

Fig 3: Detaching Bumper Ends

Courtesy of VOLVO CARS OF NORTH AMERICA.

Detach the right and left-hand ends of the bumper cover. Grip the bumper cover inside the fender liner. Carefully pull the bumper cover until the 6 catches at the top edge release.

Fig 4: Removing Bumper

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the bumper cover by pulling it straight backwards.
